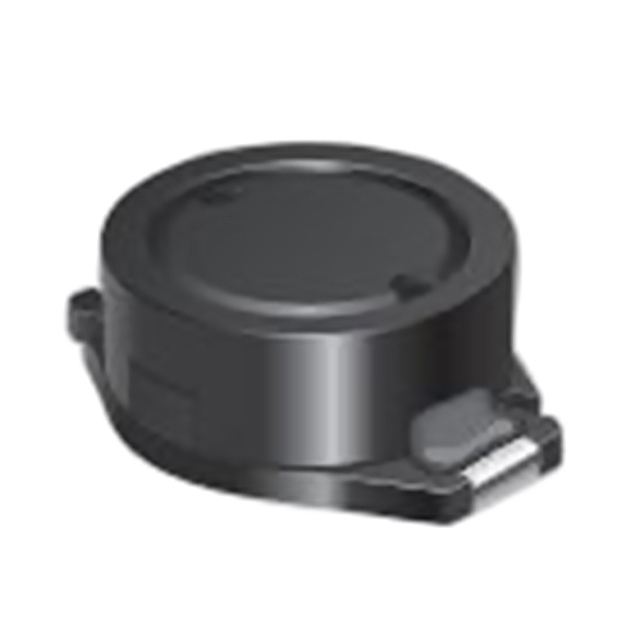

PM1608S-332M-RC

Active

Bourns Inc.

FIXED IND 3.3MH 80MA 11 OHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PM1608S-332M-RC

Active

Bourns Inc.

FIXED IND 3.3MH 80MA 11 OHM SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PM1608S-332M-RC

Current Rating (Amps)	80 mA
DC Resistance (DCR)	11 Ohm
Frequency - Self Resonant	1 MHz
Height - Seated (Max)	3 mm
Height - Seated (Max) [Max]	0.118 in
Inductance	3300 µH
Inductance Frequency - Test	100 kHz
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Nonstandard
Q @ Freq	100 kHz, 50
Shielding	Shielded
Size / Dimension [x]	0.26 in
Size / Dimension [x]	6.6 mm
Size / Dimension [y]	4.4 mm
Size / Dimension [y]	0.173 "
Tolerance	20 %
Type	Wirewound, Drum Core

PM1608S Series

Part	Frequency - Self Resonant	Mounting Type	Inductance Frequency - Test	Shielding	Material - Core	Operating Temperature [Min]	Operating Temperature [Max]	Type	Height - Seated (Max)	Height - Seated (Max) [Max]	Tolerance	Q @ Freq	DC Resistance (DCR) [Max]	Package / Case	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Current Rating (Amps)	Inductance	DC Resistance (DCR)
Bourns Inc. PM1608S-6R8M-RC	50 MHz	Surface Mount	100 kHz	Shielded	Ferrite	-55 °C	125 °C	Drum Core Wirewound	3 mm	0.118 in	20 %	40 200 kHz	65 mOhm	Nonstandard	4.4 mm	0.173 "	0.26 in	6.6 mm	1.2 A	6.8 µH
Bourns Inc. PM1608S-150M-RC	33 MHz	Surface Mount	100 kHz	Shielded	Ferrite	-55 °C	125 °C	Drum Core Wirewound	3 mm	0.118 in	20 %	40 100 kHz	90 mOhm	Nonstandard	4.4 mm	0.173 "	0.26 in	6.6 mm	800 mA	15 µH
Bourns Inc. PM1608S-151M-RC	9 MHz	Surface Mount	100 kHz	Shielded	Ferrite	-55 °C	125 °C	Drum Core Wirewound	3 mm	0.118 in	20 %	40 100 kHz	590 mOhm	Nonstandard	4.4 mm	0.173 "	0.26 in	6.6 mm	0.26 A	150 µH
Bourns Inc. PM1608S-470M-RC	20 MHz	Surface Mount	100 kHz	Shielded	Ferrite	-55 °C	125 °C	Drum Core Wirewound	3 mm	0.118 in	20 %	40 100 kHz	230 mOhm	Nonstandard	4.4 mm	0.173 "	0.26 in	6.6 mm	0.5 A	47 µH
Bourns Inc. PM1608S-4R7M-RC	105 MHz	Surface Mount	100 kHz	Shielded	Ferrite	-55 °C	125 °C	Drum Core Wirewound	3 mm	0.118 in	20 %	40 200 kHz		Nonstandard	4.4 mm	0.173 "	0.26 in	6.6 mm	1.4 A	4.7 ÁH
Bourns Inc. PM1608S-332M-RC	1 MHz	Surface Mount	100 kHz	Shielded	Ferrite	-55 °C	125 °C	Drum Core Wirewound	3 mm	0.118 in	20 %	50 100 kHz		Nonstandard	4.4 mm	0.173 "	0.26 in	6.6 mm	80 mA	3300 µH	11 Ohm
Bourns Inc. PM1608S-680M	15 MHz	Surface Mount	100 kHz	Shielded	Ferrite	-40 °C	85 °C	Drum Core Wirewound			20 %			Nonstandard	4.45 mm	0.175 in	0.26 in	6.6 mm	400 mA	68 µH	290 mOhm
Bourns Inc. PM1608S-332M	1 MHz	Surface Mount	100 kHz	Shielded	Ferrite	-40 °C	85 °C	Drum Core Wirewound			20 %			Nonstandard	4.45 mm	0.175 in	0.26 in	6.6 mm	80 mA	3300 µH	11 Ohm
Bourns Inc. PM1608S-103M-RC	800 kHz	Surface Mount	100 kHz	Shielded	Ferrite	-55 °C	125 °C	Drum Core Wirewound	3 mm	0.118 in	20 %	50 100 kHz	32.8 Ohm	Nonstandard	4.4 mm	0.173 "	0.26 in	6.6 mm	20 mA	10 mH
Bourns Inc. PM1608S-100M-RC	38 MHz	Surface Mount	100 kHz	Shielded	Ferrite	-55 °C	125 °C	Drum Core Wirewound	3 mm	0.118 in	20 %	40 200 kHz	75 mOhm	Nonstandard	4.4 mm	0.173 "	0.26 in	6.6 mm	1 A	10 µH

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	600	$ 0.71

Description

General part information

PM1608S Series

3.3 mH Shielded Drum Core, Wirewound Inductor 80 mA 11Ohm Max Nonstandard
