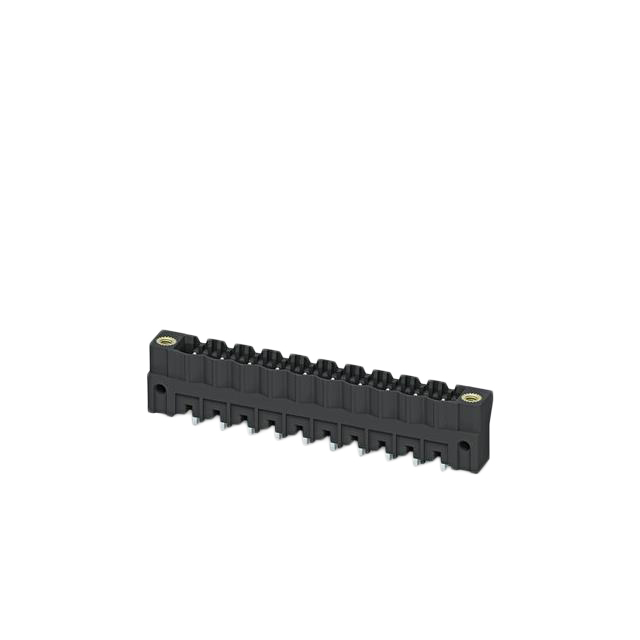

Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1837459 | CCV Series |
|---|---|---|
| Color | Black | Black |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Mating Finish | Tin | Tin |
| Contact Tail Length | 0.079 in | 0.079 - 0.102 in |
| Contact Tail Length | 2 mm | 2 - 2.6 mm |
| Current - IEC | 12 A | 12 A |
| Current - UL | 16 A | 10 - 16 A |
| Features | Mating Flange | Pick and Place Cap, Mating Flange |
| Header Orientation | Vertical | Vertical |
| Housing Material | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.472 in | 0.472 in |
| Insulation Height | 12 mm | 12 mm |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Levels | 1 | 1 |
| Number of Positions | 11 | 11 - 12 |
| Operating Temperature [Max] | 100 °C | 100 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch [x] | 5 mm | 5 - 5.08 mm |
| Pitch [x] | 0.197 in | 0.197 - 0.2 in |
| Positions Per Level | 11 | 3 - 12 |
| Termination Style | Solder | Solder |
| Type | Header, Male Pins, Shrouded (4 Side) | Header, Male Pins, Shrouded (2 Side), Header, Male Pins, Shrouded (4 Side) |
| Voltage - IEC | 320 V | 320 - 400 V |
| Voltage - UL | 300 V | 300 V |
CCV Series
Pluggable Terminal Blocks 3 Pos 5.08mm pitch Through Hole Header
| Part | Insulation Height | Insulation Height | Type | Number of Levels | Number of Positions | Pitch [x] | Pitch [x] | Current - IEC | Voltage - IEC | Positions Per Level | Current - UL | Features | Voltage - UL | Mounting Type | Contact Tail Length | Contact Tail Length | Contact Mating Finish | Material Flammability Rating | Color | Header Orientation | Housing Material | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 1955620 | 0.472 in | 12 mm | Header, Male Pins, Shrouded (2 Side) | 1 | 12 | 0.2 in | 5.08 mm | 12 A | 400 V | 12 | 10 A | Pick and Place Cap | 300 V | Through Hole | 0.102 in | 2.6 mm | Tin | UL94 V-0 | Black | Vertical | Liquid Crystal Polymer (LCP) | Solder | |||
Phoenix Contact 1837459 | 0.472 in | 12 mm | Header, Male Pins, Shrouded (4 Side) | 1 | 11 | 0.197 in | 5 mm | 12 A | 320 V | 11 | 16 A | Mating Flange | 300 V | Through Hole | 0.079 in | 2 mm | Tin | UL94 V-0 | Black | Vertical | Liquid Crystal Polymer (LCP) | Solder | 100 °C | -40 °C | Copper Alloy |
Phoenix Contact 1955536 | 0.472 in | 12 mm | Header, Male Pins, Shrouded (2 Side) | 1 | 0.2 in | 5.08 mm | 12 A | 400 V | 3 | 10 A | Pick and Place Cap | 300 V | Through Hole | 0.102 in | 2.6 mm | Tin | UL94 V-0 | Black | Vertical | Liquid Crystal Polymer (LCP) | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
CCV Series
Pluggable Terminal Blocks 3 Pos 5.08mm pitch Through Hole Header
