1955536

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 3 POS 5.08MM PITCH THROUGH HOLE HEADER

Search across all available documentation for this part.

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 3 POS 5.08MM PITCH THROUGH HOLE HEADER

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

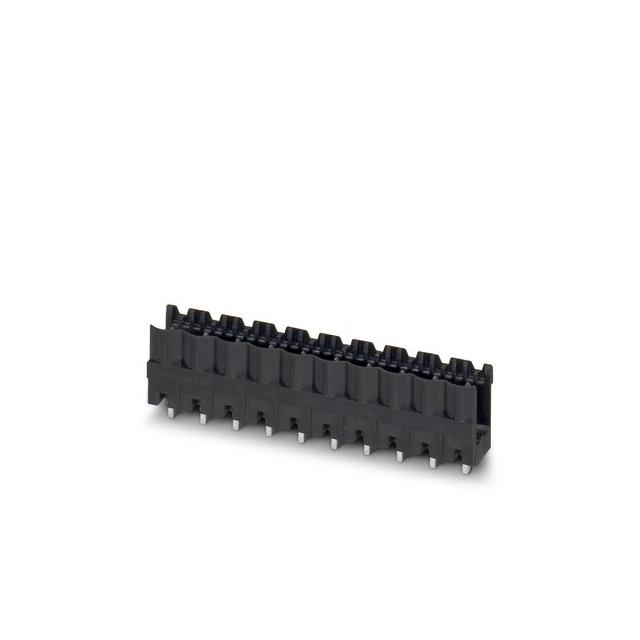

Pluggable Terminal Blocks 3 Pos 5.08mm pitch Through Hole Header

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	1955536	CCV Series

Color	Black	Black
Contact Material	-	Copper Alloy
Contact Mating Finish	Tin	Tin
Contact Tail Length	0.102 in	0.079 - 0.102 in
Contact Tail Length	2.6 mm	2 - 2.6 mm
Current - IEC	12 A	12 A
Current - UL	10 A	10 - 16 A
Features	Pick and Place Cap	Pick and Place Cap, Mating Flange
Header Orientation	Vertical	Vertical
Housing Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Insulation Height	0.472 in	0.472 in
Insulation Height	12 mm	12 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Levels	1	1
Number of Positions	-	11 - 12
Operating Temperature	-	100 °C
Operating Temperature	-	-40 °C
Pitch [x]	0.2 in	0.197 - 0.2 in
Pitch [x]	5.08 mm	5 - 5.08 mm
Positions Per Level	3	3 - 12
Termination Style	Solder	Solder
Type	Header, Male Pins, Shrouded (2 Side)	Header, Male Pins, Shrouded (2 Side), Header, Male Pins, Shrouded (4 Side)
Voltage - IEC	400 V	320 - 400 V
Voltage - UL	300 V	300 V

Pluggable Terminal Blocks 3 Pos 5.08mm pitch Through Hole Header

Part	Insulation Height	Insulation Height	Type	Number of Levels	Number of Positions	Pitch [x]	Pitch [x]	Current - IEC	Voltage - IEC	Positions Per Level	Current - UL	Features	Voltage - UL	Mounting Type	Contact Tail Length	Contact Tail Length	Contact Mating Finish	Material Flammability Rating	Color	Header Orientation	Housing Material	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material
Phoenix Contact 1955620	0.472 in	12 mm	Header, Male Pins, Shrouded (2 Side)	1	12	0.2 in	5.08 mm	12 A	400 V	12	10 A	Pick and Place Cap	300 V	Through Hole	0.102 in	2.6 mm	Tin	UL94 V-0	Black	Vertical	Liquid Crystal Polymer (LCP)	Solder
Phoenix Contact 1837459	0.472 in	12 mm	Header, Male Pins, Shrouded (4 Side)	1	11	0.197 in	5 mm	12 A	320 V	11	16 A	Mating Flange	300 V	Through Hole	0.079 in	2 mm	Tin	UL94 V-0	Black	Vertical	Liquid Crystal Polymer (LCP)	Solder	100 °C	-40 °C	Copper Alloy
Phoenix Contact 1955536	0.472 in	12 mm	Header, Male Pins, Shrouded (2 Side)	1		0.2 in	5.08 mm	12 A	400 V	3	10 A	Pick and Place Cap	300 V	Through Hole	0.102 in	2.6 mm	Tin	UL94 V-0	Black	Vertical	Liquid Crystal Polymer (LCP)	Solder
