R121414000

Active

Radiall USA, Inc.

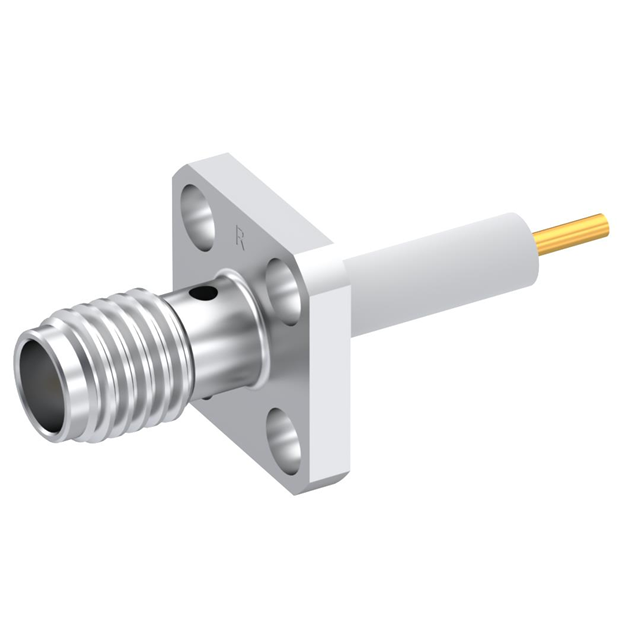

SSMA / SQUARE FLANGE RECEPTACLE

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SSMA / SQUARE FLANGE RECEPTACLE

Technical Specifications

Parameters and characteristics for this part

Specification	R121414000

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SSMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Extended Insulation
Frequency - Max [Max]	18 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Mounting Type	Through Hole, Panel Mount
Number of Ports	1
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	250 VDC

Part	Voltage Rating	Connector Style	Center Contact Material	Number of Ports	Shield Termination	Features	Mating Cycles	Connector Type	Center Contact Plating	Body Material	Impedance	Frequency - Max [Max]	Mounting Type	Housing Color	Dielectric Material	Contact Termination	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Feature
Radiall USA, Inc. R121414000	250 VDC	SSMA	Beryllium Copper	1	Solder	Extended Insulation	500	Female Socket Jack	Gold	Stainless Steel	50 Ohms	18 GHz	Panel Mount Through Hole	Silver	Polytetrafluoroethylene (PTFE)	Solder	115 °C	-65 ░C	Flange

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 120.52

General part information

SSMA Connector Jack, Female Socket 50 Ohms Panel Mount, Through Hole Solder
