5301-12-2
ActivePomona Electronics

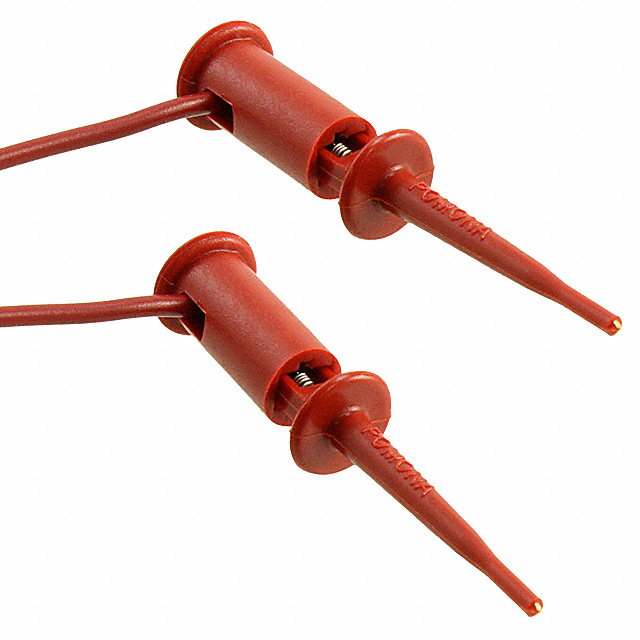

SMD PINCER TO SMD PINCER 12"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5301-12-2
ActivePomona Electronics
SMD PINCER TO SMD PINCER 12"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 5301-12-2 |
|---|---|
| 1st Connector | SMD Pincer |
| 2nd Connector | SMD Pincer |
| Cable Length | 12 in |
| Cable Length | 304.8 mm |
| Configuration | Hook to Grabber, Hook, Grabber |
| Contents | Red |
| Contents [custom] | 1 |
| Current Rating (Amps) | 0.5 A |
| Material - Insulation | Poly-Vinyl Chloride (PVC) |
| Temperature Range | 216 °F |
| Temperature Range | 102 °C |
| Voltage - Rated | 150 V |
| Wire Gauge | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 14.09 | |
| 25 | $ 13.59 | |||
Description
General part information
5301-12 Series
12.0" (304.80mm) SMD Pincer To SMD Pincer Test Lead 150VDC 1 Lead, Red
