PDL06-24D15

Active

P-DUKE Technology

DC DC CONVERTER +/-15V 6W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

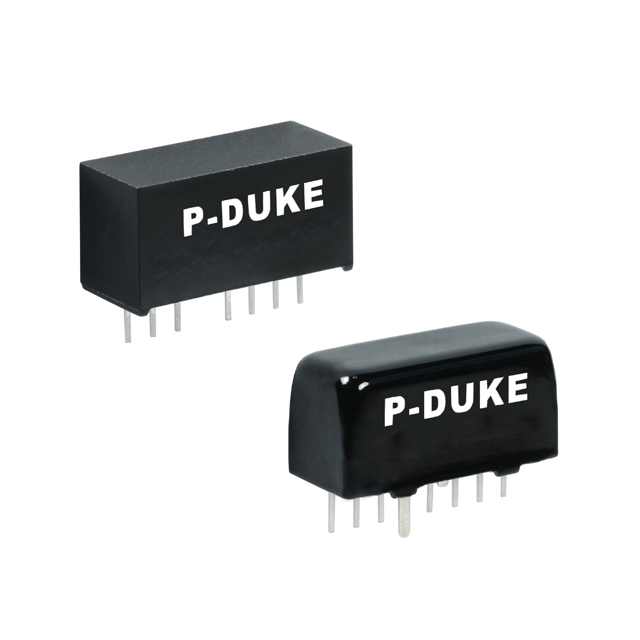

PDL06-24D15

Active

P-DUKE Technology

DC DC CONVERTER +/-15V 6W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

PDL06 Series

Isolated Module DC DC Converter 2 Output 15V -15V 200mA, 200mA 18V - 36V Input

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PDL06-24D15	PDL06 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CB, cURus, CE	CB, cURus, CE
Current - Output (Max)	-	1.2 - 500 mA
Efficiency	85 %	84 - 87 %
Features	Remote On/Off	Standby Output, Remote On/Off
Mounting Type	Through Hole	Through Hole
Number of Outputs	2	1 - 2
Operating Temperature [Max]	90 °C	90 - 100 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	8-SIP Module	8-SIP Module
Package / Case	7 Leads	7 Leads
Power (Watts)	6 W	6 W
Size / Dimension [x]	0.86 in	0.86 in
Size / Dimension [x]	21.8 mm	21.8 mm
Size / Dimension [y]	0.36 "	0.36 "
Size / Dimension [y]	9.1 mm	9.1 mm
Size / Dimension [z]	11.2 mm	11.2 mm
Size / Dimension [z]	0.44 "	0.44 "
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	36 V	9 - 75 V
Voltage - Input (Min) [Min]	18 V	4.5 - 18 V
Voltage - Isolation	1.6 kV	1.6 kV
Voltage - Output 1	15 V	5 - 24 V
Voltage - Output 2	-15 V	-15 V

PDL06 Series

DC DC CONVERTER 12V 6W

Part	Voltage - Input (Max) [Max]	Number of Outputs	Type	Voltage - Input (Min) [Min]	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Package / Case	Package / Case	Voltage - Output 1	Efficiency	Features	Applications	Mounting Type	Approval Agency	Current - Output (Max) [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Output 2
P-DUKE Technology PDL06-48S12W	75 V	1	Isolated Module	18 V	1.6 kV	-40 °C	100 °C	6 W	8-SIP Module	7 Leads	12 V	87 %	Remote On/Off, Standby Output	ITE (Commercial)	Through Hole	CB, CE, cURus	500 mA	0.86 in	21.8 mm	11.2 mm	0.44 "	0.36 "	9.1 mm
P-DUKE Technology PDL06-24S12W	36 V	1	Isolated Module	9 V	1.6 kV	-40 °C	100 °C	6 W	8-SIP Module	7 Leads	12 V	87 %	Remote On/Off, Standby Output	ITE (Commercial)	Through Hole	CB, CE, cURus	500 mA	0.86 in	21.8 mm	11.2 mm	0.44 "	0.36 "	9.1 mm
P-DUKE Technology PDL06-05D15	9 V	2	Isolated Module	4.5 V	1.6 kV	-40 °C	90 °C	6 W	8-SIP Module	7 Leads	15 V	84 %	Remote On/Off	ITE (Commercial)	Through Hole	CB, CE, cURus		0.86 in	21.8 mm	11.2 mm	0.44 "	0.36 "	9.1 mm	-15 V
P-DUKE Technology PDL06-24S24W	36 V	1	Isolated Module	9 V	1.6 kV	-40 °C	100 °C	6 W	8-SIP Module	7 Leads	24 V	87 %	Remote On/Off, Standby Output	ITE (Commercial)	Through Hole	CB, CE, cURus	250 mA	0.86 in	21.8 mm	11.2 mm	0.44 "	0.36 "	9.1 mm
P-DUKE Technology PDL06-48S05W	75 V	1	Isolated Module	18 V	1.6 kV	-40 °C	100 °C	6 W	8-SIP Module	7 Leads	5 V	84 %	Remote On/Off, Standby Output	ITE (Commercial)	Through Hole	CB, CE, cURus	1.2 A	0.86 in	21.8 mm	11.2 mm	0.44 "	0.36 "	9.1 mm
P-DUKE Technology PDL06-24D15	36 V	2	Isolated Module	18 V	1.6 kV	-40 °C	90 °C	6 W	8-SIP Module	7 Leads	15 V	85 %	Remote On/Off	ITE (Commercial)	Through Hole	CB, CE, cURus		0.86 in	21.8 mm	11.2 mm	0.44 "	0.36 "	9.1 mm	-15 V
P-DUKE Technology PDL06-24D15W	36 V	2	Isolated Module	9 V	1.6 kV	-40 °C	100 °C	6 W	8-SIP Module	7 Leads	15 V	87 %	Remote On/Off, Standby Output	ITE (Commercial)	Through Hole	CB, CE, cURus		0.86 in	21.8 mm	11.2 mm	0.44 "	0.36 "	9.1 mm	-15 V
