MEC6-110-02-L-D-RA1-TR
ActiveSamtec Inc.

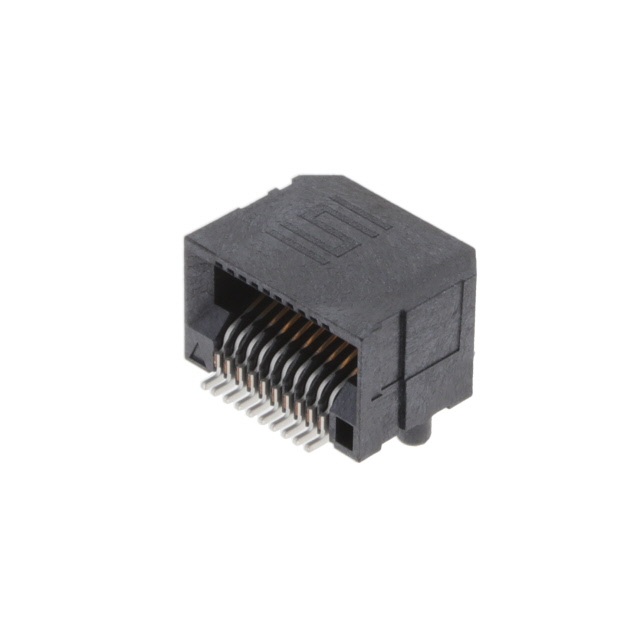

CARD EDGE CONNECTOR, DUAL SIDE, 20 CONTACTS, PCB MOUNT, RIGHT ANGLE
Deep-Dive with AI
Search across all available documentation for this part.
MEC6-110-02-L-D-RA1-TR
ActiveSamtec Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 20 CONTACTS, PCB MOUNT, RIGHT ANGLE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MEC6-110-02-L-D-RA1-TR |
|---|---|
| Card Thickness | 0.062 in |
| Card Thickness | 1.57 mm |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Phosphor Bronze |
| Features | Board Guide |
| Gender | Female |
| Material - Insulation | Liquid Crystal Polymer (LCP) |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 20 |
| Number of Positions/Bay/Row [custom] | 10 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.64 mm |
| Pitch [x] | 0.025 in |
| Read Out | Dual |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
MEC6-110 Series
20 Position Female Connector Non Specified - Dual Edge Gold 0.025" (0.64mm) Black
