IXFZ520N075T2

Obsolete

IXYS

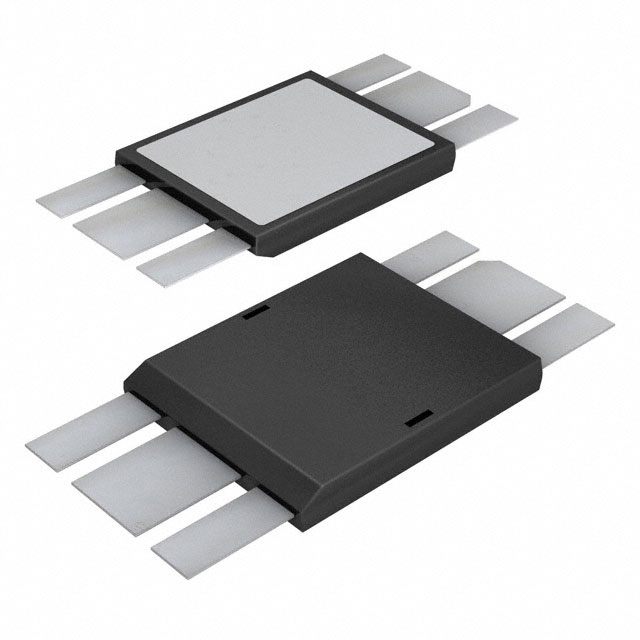

MOSFET N-CH 75V 465A DE475

Search across all available documentation for this part.

Obsolete

IXYS

MOSFET N-CH 75V 465A DE475

Technical Specifications

Parameters and characteristics for this part

Specification	IXFZ520N075T2

Current - Continuous Drain (Id) @ 25°C	465 A
Drain to Source Voltage (Vdss)	75 V
Drive Voltage (Max Rds On, Min Rds On)	10 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs	545 nC
Input Capacitance (Ciss) (Max) @ Vds	41000 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C
Package / Case	6-SMD, Flat Leads
Power Dissipation (Max)	600 W
Rds On (Max) @ Id, Vgs	1.3 mOhm
Supplier Device Package	DE475
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V
Vgs(th) (Max) @ Id	4 V

Part	Drive Voltage (Max Rds On, Min Rds On)	Vgs(th) (Max) @ Id	Operating Temperature [Min]	Operating Temperature [Max]	Current - Continuous Drain (Id) @ 25°C	Drain to Source Voltage (Vdss)	Mounting Type	FET Type	Power Dissipation (Max)	Rds On (Max) @ Id, Vgs	Package / Case	Input Capacitance (Ciss) (Max) @ Vds	Supplier Device Package	Gate Charge (Qg) (Max) @ Vgs	Technology	Vgs (Max)
IXYS IXFZ520N075T2	10 V	4 V	-55 °C	175 ░C	465 A	75 V	Surface Mount	N-Channel	600 W	1.3 mOhm	6-SMD Flat Leads	41000 pF	DE475	545 nC	MOSFET (Metal Oxide)	20 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

N-Channel 75 V 465A (Tc) 600W (Tc) Surface Mount DE475
