M80-6110645
ActiveHarwin Inc.

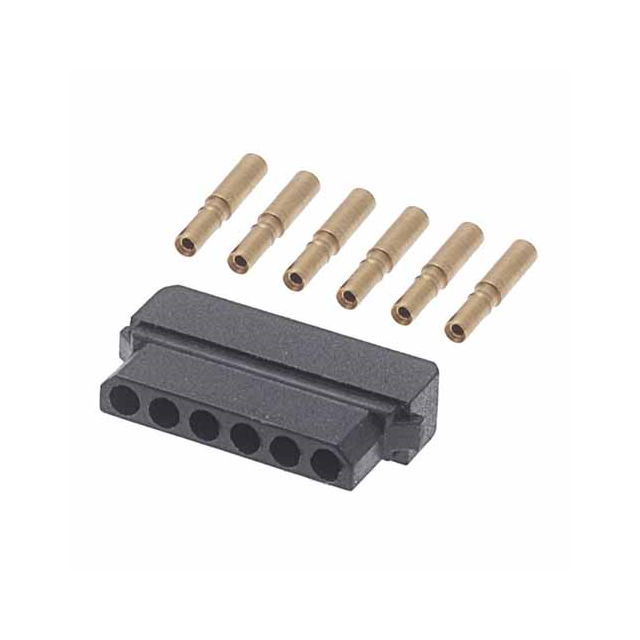

6 POS. FEMALE SIL 22AWG CABLE CONN. KIT, FOR LATCHES ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
M80-6110645
ActiveHarwin Inc.
6 POS. FEMALE SIL 22AWG CABLE CONN. KIT, FOR LATCHES ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M80-6110645 |
|---|---|
| Cable Termination | Crimp |
| Color | Black |
| Connector Type | Receptacle |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.75 µm |
| Contact Finish Thickness | 29.5 µin |
| Contact Type | Female Socket |
| Fastening Type | Locking Ramp |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Pitch [x] | 0.079 in |
| Pitch [x] | 2 mm |
| Wire Gauge | 22 AWG |
| Wire Type | Discrete |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Newark | Each | 1000 | $ 5.40 | |
| 2500 | $ 4.87 | |||
Description
General part information
M80-611 Series
6 Position Rectangular Receptacle Connector Crimp Gold 22 AWG
