AXK700347G

Obsolete

Panasonic Electric Works

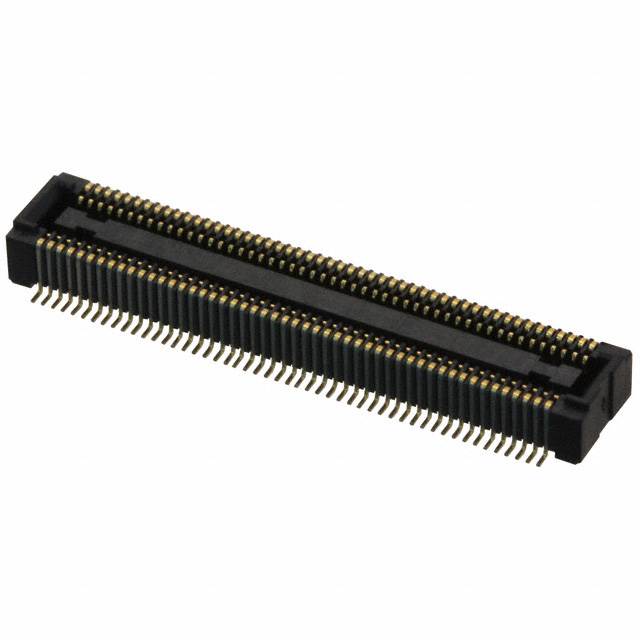

CONN SOCKET 100POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

CONN SOCKET 100POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXK700347G

Connector Type	Center Strip, Socket, Outer Edge Contacts
Contact Finish	Gold
Height Above Board [z]	2.41 mm
Height Above Board [z]	0.095 in
Mated Stacking Heights [z]	3 mm, 2.5 mm
Mounting Type	Surface Mount
Number of Positions	100
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Number of Positions	Height Above Board [z]	Height Above Board [z]	Number of Rows	Pitch [x]	Pitch [x]	Connector Type	Mounting Type	Contact Finish	Mated Stacking Heights [z]	Features
Panasonic Electric Works AXK700337G	100	2.41 mm	0.095 in	2	0.016 in	0.4 mm	Center Strip Outer Edge Contacts Socket	Surface Mount	Gold	2.5 mm 3 mm	Board Guide
Panasonic Electric Works AXK700347G	100	2.41 mm	0.095 in	2	0.016 in	0.4 mm	Center Strip Outer Edge Contacts Socket	Surface Mount	Gold	2.5 mm 3 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

100 Position Connector Socket, Center Strip, Outer Edge Contacts Surface Mount Gold
