160-000-060R031

Active

NorComp Inc.

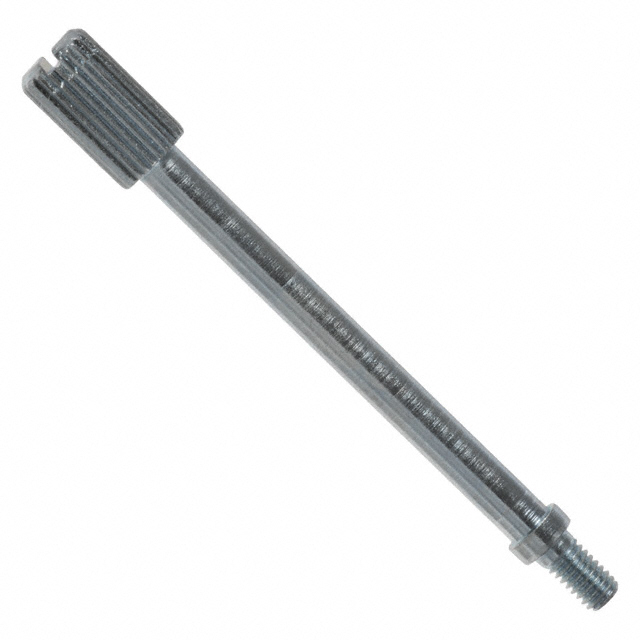

HARDWARE THUMBSCREW M2.6

Search across all available documentation for this part.

Active

NorComp Inc.

HARDWARE THUMBSCREW M2.6

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	160-000-060R031	160-000 Series

	-	-
Accessory Type	-	Jackscrew Socket, Jackscrew, Slotted, Dust, Cap (Cover)
Features	-	Hardware Included, Clip, Metal Chain
For Use With/Related Products	-	D-Sub Connectors, D-Sub Connectors, Male, D-Sub Connectors, Female
Length - Below Head	-	0.197 - 0.625 "
Length - Below Head	-	5 - 15.88 mm
Length - Below Head [x]	1.492 in	0.294 - 1.492 in
Length - Below Head [x]	37.9 mm	7.47 - 37.9 mm
Length - Threaded Portion Below Head	0.205 in	0.205 in
Length - Threaded Portion Below Head	5.21 mm	5.21 mm
Length - Threaded Portion Below Head	-	0.197 - 0.625 in
Length - Threaded Portion Below Head	-	5 - 15.88 mm
Length - Threaded Portion Below Head	-	3.66 mm
Length - Threaded Portion Below Head	-	0.144 in
Thread Size	M2.6	4-40 Screw, 4-40 Socket, 4-40, M2.6

160-000-017R032 ROHS COMPLIANT: YES

Part	Features	Length - Threaded Portion Below Head [x]	Length - Threaded Portion Below Head [x]	For Use With/Related Products	Length - Below Head [x]	Length - Below Head [x]	Thread Size	Accessory Type	Length - Below Head	Length - Below Head	Length - Threaded Portion Below Head [custom]	Length - Threaded Portion Below Head [custom]	Length - Threaded Portion Below Head	Length - Threaded Portion Below Head
NorComp Inc. 160-000-017R032	Hardware Included	0.52 in	13.21 mm	D-Sub Connectors	0.52 in	13.21 mm	4-40 Screw, 4-40 Socket	Jackscrew Socket
NorComp Inc. 160-000-010R031	Hardware Included			D-Sub Connectors			4-40 Screw, 4-40 Socket	Jackscrew Socket	0.312 "	7.92 mm
NorComp Inc. 160-000-002R031	Clip			D-Sub Connectors	0.294 in	7.47 mm	4-40	Jackscrew, Slotted			3.66 mm	0.144 in
NorComp Inc. 160-000-125R002	Metal Chain			D-Sub Connectors, Male				Cap (Cover), Dust
NorComp Inc. 160-000-013R031	Hardware Included	0.197 in	5 mm	D-Sub Connectors			4-40 Screw, 4-40 Socket	Jackscrew Socket	0.197 in	5 mm
NorComp Inc. 160-000-125R000				D-Sub Connectors, Male				Cap (Cover), Dust
NorComp Inc. 160-000-225R000				D-Sub Connectors, Female				Cap (Cover), Dust
NorComp Inc. 160-000-001R032	Clip			D-Sub Connectors	0.294 in	7.47 mm	4-40	Jackscrew, Slotted			3.66 mm	0.144 in
NorComp Inc. 160-000-060R031					1.492 in	37.9 mm	M2.6						0.205 in	5.21 mm
NorComp Inc. 160-000-016R031	Hardware Included	0.433 in	11 mm	D-Sub Connectors	0.433 in	11 mm	4-40 Screw, 4-40 Socket	Jackscrew Socket

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Jackscrew, Thumb Screw For D-Sub Connectors Series 970, 971, 972
