160-000-016R031

Active

NorComp Inc.

D SUB SCREWLOCK / SLIDELOCK, 160 SERIES, 11 MM, 4-40 UNC

Search across all available documentation for this part.

Active

NorComp Inc.

D SUB SCREWLOCK / SLIDELOCK, 160 SERIES, 11 MM, 4-40 UNC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

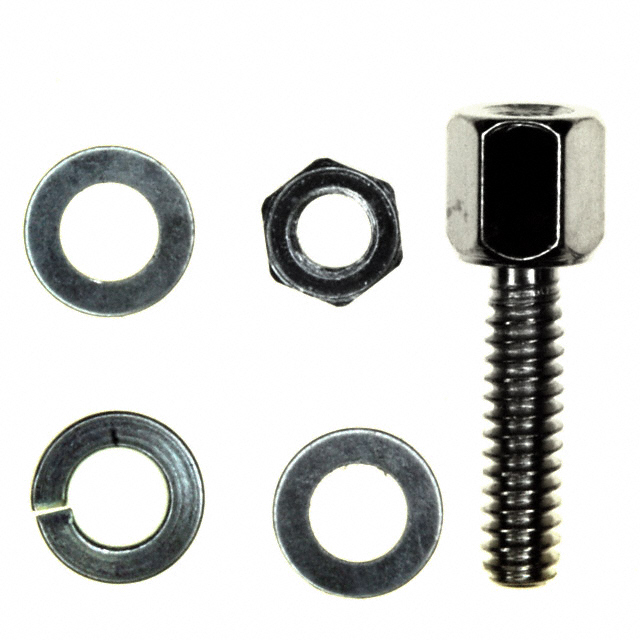

Jackscrew Socket For D-Sub Connectors

Technical documentation and resources

Specification	160-000-016R031	160-000 Series

	-	-
Accessory Type	Jackscrew Socket	Jackscrew Socket, Jackscrew, Slotted, Dust, Cap (Cover)
Features	Hardware Included	Hardware Included, Clip, Metal Chain
For Use With/Related Products	D-Sub Connectors	D-Sub Connectors, D-Sub Connectors, Male, D-Sub Connectors, Female
Length - Below Head	-	0.197 - 0.625 "
Length - Below Head	-	5 - 15.88 mm
Length - Below Head [x]	11 mm	7.47 - 37.9 mm
Length - Below Head [x]	0.433 in	0.294 - 1.492 in
Length - Threaded Portion Below Head	-	3.66 mm
Length - Threaded Portion Below Head	-	0.144 in
Length - Threaded Portion Below Head	-	0.205 in
Length - Threaded Portion Below Head	-	5.21 mm
Length - Threaded Portion Below Head [x]	11 mm	5 - 15.88 mm
Length - Threaded Portion Below Head [x]	0.433 in	0.197 - 0.625 in
Thread Size	4-40 Screw, 4-40 Socket	4-40 Screw, 4-40 Socket, 4-40, M2.6

Part	Features	Length - Threaded Portion Below Head [x]	Length - Threaded Portion Below Head [x]	For Use With/Related Products	Length - Below Head [x]	Length - Below Head [x]	Thread Size	Accessory Type	Length - Below Head	Length - Below Head	Length - Threaded Portion Below Head [custom]	Length - Threaded Portion Below Head [custom]	Length - Threaded Portion Below Head	Length - Threaded Portion Below Head
NorComp Inc. 160-000-017R032	Hardware Included	0.52 in	13.21 mm	D-Sub Connectors	0.52 in	13.21 mm	4-40 Screw, 4-40 Socket	Jackscrew Socket
NorComp Inc. 160-000-010R031	Hardware Included			D-Sub Connectors			4-40 Screw, 4-40 Socket	Jackscrew Socket	0.312 "	7.92 mm
NorComp Inc. 160-000-002R031	Clip			D-Sub Connectors	0.294 in	7.47 mm	4-40	Jackscrew, Slotted			3.66 mm	0.144 in
NorComp Inc. 160-000-125R002	Metal Chain			D-Sub Connectors, Male				Cap (Cover), Dust
NorComp Inc. 160-000-013R031	Hardware Included	0.197 in	5 mm	D-Sub Connectors			4-40 Screw, 4-40 Socket	Jackscrew Socket	0.197 in	5 mm
NorComp Inc. 160-000-125R000				D-Sub Connectors, Male				Cap (Cover), Dust
NorComp Inc. 160-000-225R000				D-Sub Connectors, Female				Cap (Cover), Dust
NorComp Inc. 160-000-001R032	Clip			D-Sub Connectors	0.294 in	7.47 mm	4-40	Jackscrew, Slotted			3.66 mm	0.144 in
NorComp Inc. 160-000-060R031					1.492 in	37.9 mm	M2.6						0.205 in	5.21 mm
NorComp Inc. 160-000-016R031	Hardware Included	0.433 in	11 mm	D-Sub Connectors	0.433 in	11 mm	4-40 Screw, 4-40 Socket	Jackscrew Socket
