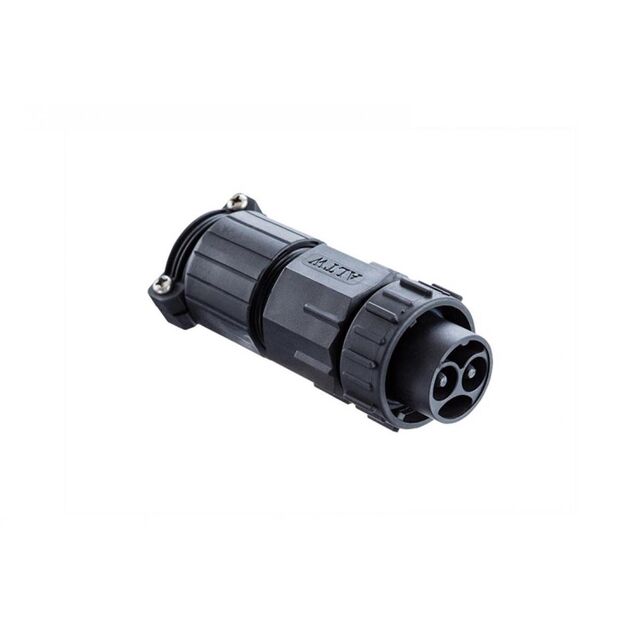

PWL-03BFMA-TL7001

Active

Amphenol LTW

POWER, PWL, PLASTIC, 30A, 03 PINS, FEMALE CONNECTOR, MALE CONTACT, STRAIGHT, 3 POINTS LOCK, SOLDER, FIELD INSTALLABLE, 10.0- 19.

Search across all available documentation for this part.

Active

Amphenol LTW

POWER, PWL, PLASTIC, 30A, 03 PINS, FEMALE CONNECTOR, MALE CONTACT, STRAIGHT, 3 POINTS LOCK, SOLDER, FIELD INSTALLABLE, 10.0- 19.

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Features	Orientation	Fastening Type	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Primary Material	Shell Material	Ingress Protection	Color	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Voltage Rating	Mounting Type	Current Rating (Amps)	Insert Material
Amphenol LTW PWL-03BFMA-TL7001	Male Pins Plug	Cable Clamp Coupling Nut	Keyed	Bayonet Lock	Copper Alloy	-40 °C	105 ░C	Unshielded	Plastic	Polyphenylene Ether (PPE)	IP67 - Dust Tight Waterproof	Black	0.748 in	19 mm	10 mm	0.394 in	300 VDC	Free Hanging (In-Line)	30 A	Polyphenylene Ether (PPE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Plug, Male Pins Solder Cup
