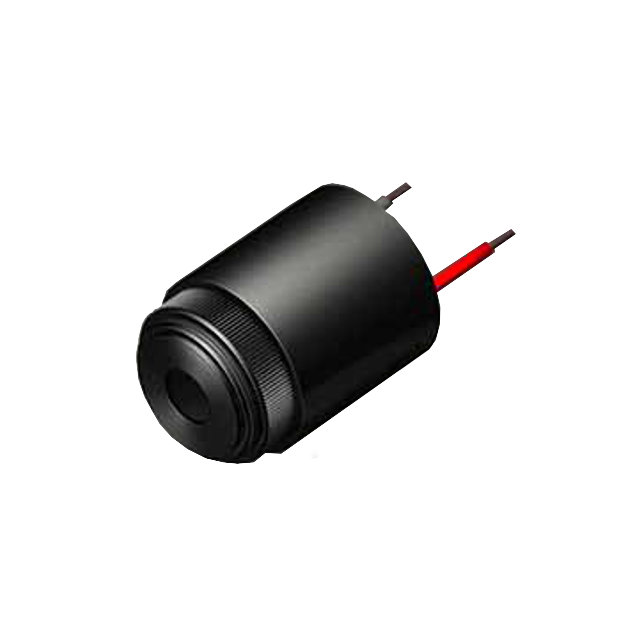

Specification	OC-19-201-WOA

Approval Agency	UL, UR
Driver Circuitry	Indicator, Internally Driven
Ingress Protection Description	Dust Tight, Waterproof
Ingress Protection IP Rating	IP68
Mounting Type	Panel Mount
Operating Temperature (Max)	65 °C
Operating Temperature (Min)	-20 °C
Port Location	Top
Technology	Piezo
Termination	Wire Leads

OC-19-201 Series

Part	Port Location	Termination	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Technology	Driver Circuitry	Approval Agency	Ingress Protection IP Rating	Ingress Protection Description	Current - Supply (Max)	Current - Supply (Min)	Height - Seated (Max)	Voltage Range (Max)	Voltage Range (Min)	Sound Pressure Level (SPL)	Operating Mode	Frequency	Input Type	Size / Dimension Diameter	Termination Probe Tip OD
Floyd Bell Inc OC-19-201-WM	Top	Wire Leads	Panel Mount	-20 °C	65 °C	Piezo	Indicator Internally Driven	UL UR	IP68	Dust Tight Waterproof
Floyd Bell Inc OC-19-201-SL	Top	Quick Connect Tab - (6.35mm) Screw Terminal	Panel Mount	-20 °C	65 °C	Piezo	Indicator Internally Driven	UL UR	IP68	Dust Tight Waterproof	60 mA	20 mA	1.84 in	120 V	40 VDC	97 dB	Single Tone	2.9 kHz	AC	1.41 in	0.25 in
Floyd Bell Inc OC-19-201-QM	Top	Quick Connect Tab - (6.35mm)	Panel Mount	-20 °C	65 °C	Piezo	Indicator Internally Driven	UL UR	IP68	Dust Tight Waterproof	60 mA	20 mA	1.84 in	120 V	40 VDC	97 dB	Single Tone	2.9 kHz	AC	1.41 in	0.25 in
Floyd Bell Inc OC-19-201-SM	Top	Quick Connect Tab - (6.35mm) Screw Terminal	Panel Mount	-20 °C	65 °C	Piezo	Indicator Internally Driven	UL UR	IP68	Dust Tight Waterproof	60 mA	20 mA	1.84 in	120 V	40 VDC	97 dB	Single Tone	2.9 kHz	AC	1.41 in	0.25 in
Floyd Bell Inc OC-19-201-SO	Top	Quick Connect Tab - (6.35mm) Screw Terminal	Panel Mount	-20 °C	65 °C	Piezo	Indicator Internally Driven	UL UR	IP68	Dust Tight Waterproof	60 mA	20 mA	1.84 in	120 V	40 VDC	97 dB	Single Tone	2.9 kHz	AC	1.41 in	0.25 in
Floyd Bell Inc OC-19-201-WL	Top	Wire Leads	Panel Mount	-20 °C	65 °C	Piezo	Indicator Internally Driven	UL UR	IP68	Dust Tight Waterproof
Floyd Bell Inc OC-19-201-QL	Top	Quick Connect Tab - (6.35mm)	Panel Mount	-20 °C	65 °C	Piezo	Indicator Internally Driven	UL UR	IP68	Dust Tight Waterproof	60 mA	20 mA	1.84 in	120 V	40 VDC	97 dB	Single Tone	2.9 kHz	AC	1.41 in	0.25 in
Floyd Bell Inc OC-19-201-QOA	Top	Quick Connect Tab - (6.35mm)	Panel Mount	-20 °C	65 °C	Piezo	Indicator Internally Driven	UL UR	IP68	Dust Tight Waterproof	60 mA	20 mA	1.84 in	120 V	40 VDC	97 dB	Medium Pulse Single Tone	2.9 kHz	AC	1.41 in	0.25 in
Floyd Bell Inc OC-19-201-WOA	Top	Wire Leads	Panel Mount	-20 °C	65 °C	Piezo	Indicator Internally Driven	UL UR	IP68	Dust Tight Waterproof
Floyd Bell Inc OC-19-201-WO	Top	Wire Leads	Panel Mount	-20 °C	65 °C	Piezo	Indicator Internally Driven	UL UR	IP68	Dust Tight Waterproof
