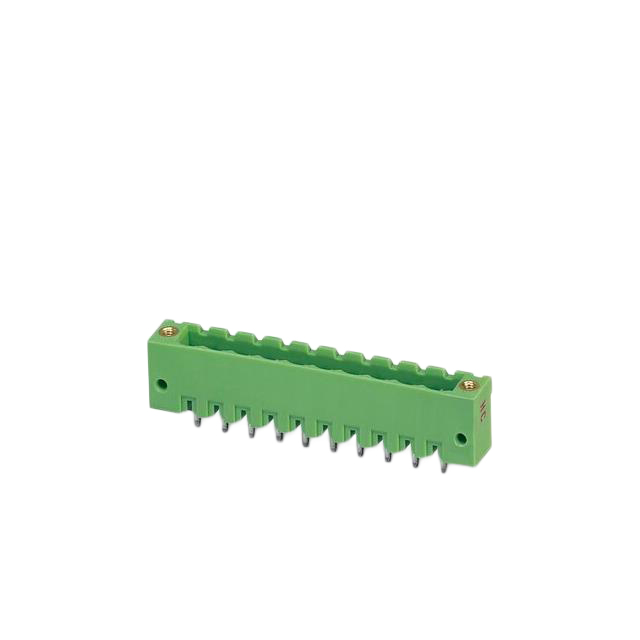

PLUGGABLE TERMINAL BLOCKS 9 POS 5.08MM PITCH THROUGH HOLE HEADER

Search across all available documentation for this part.

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 9 POS 5.08MM PITCH THROUGH HOLE HEADER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1924596	MSTBV Series

Color	Green	Green
Contact Mating Finish	Tin	Tin
Contact Tail Length	0.154 "	0.154 "
Contact Tail Length	3.9 mm	3.9 mm
Current - IEC	16 A	12 - 16 A
Current - UL	16 A	12 - 16 A
Features	Mating and Mounting Flange	Mating and Mounting Flange, Ejectors
Header Orientation	Vertical	Vertical
Housing Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon, Polybutylene Terephthalate (PBT)
Insulation Height	0.472 in	0.472 in
Insulation Height	12 mm	12 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Levels	1	1
Number of Positions	9	9 - 20
Pitch [x]	0.2 in	0.197 - 0.2 in
Pitch [x]	5.08 mm	5 - 5.08 mm
Positions Per Level	9	9 - 20
Termination Style	Solder	Solder
Type	Header, Male Pins, Shrouded (4 Side)	Header, Male Pins, Shrouded (4 Side)
Voltage - IEC	400 V	250 - 400 V
Voltage - UL	300 V	300 V

Pluggable Terminal Blocks 20 Pos 5mm pitch Through Hole Header

Part	Housing Material	Termination Style	Header Orientation	Type	Number of Positions	Current - IEC	Material Flammability Rating	Mounting Type	Number of Levels	Features	Voltage - UL	Pitch [x]	Pitch [x]	Voltage - IEC	Contact Tail Length	Contact Tail Length	Positions Per Level	Insulation Height	Insulation Height	Contact Mating Finish	Color	Current - UL
Phoenix Contact 1924596	Polyamide (PA), Nylon	Solder	Vertical	Header, Male Pins, Shrouded (4 Side)	9	16 A	UL94 V-0	Through Hole	1	Mating and Mounting Flange	300 V	0.2 in	5.08 mm	400 V	0.154 "	3.9 mm	9	0.472 in	12 mm	Tin	Green	16 A
Phoenix Contact 1808641	Polybutylene Terephthalate (PBT)	Solder	Vertical	Header, Male Pins, Shrouded (4 Side)	20	12 A	UL94 V-0	Through Hole	1	Ejectors	300 V	0.2 in	5.08 mm	400 V	0.154 "	3.9 mm	20	0.472 in	12 mm	Tin	Green	12 A
Phoenix Contact 1777060	Polybutylene Terephthalate (PBT)	Solder	Vertical	Header, Male Pins, Shrouded (4 Side)	20	12 A	UL94 V-0	Through Hole	1	Mating and Mounting Flange	300 V	0.197 in	5 mm	400 V	0.154 "	3.9 mm	20	0.472 in	12 mm	Tin	Green	12 A
Phoenix Contact 1756951		Solder	Vertical	Header, Male Pins, Shrouded (4 Side)	20	12 A		Through Hole	1	Mating and Mounting Flange		0.2 in	5.08 mm	250 V	0.154 "	3.9 mm	20	0.472 in	12 mm	Tin	Green
