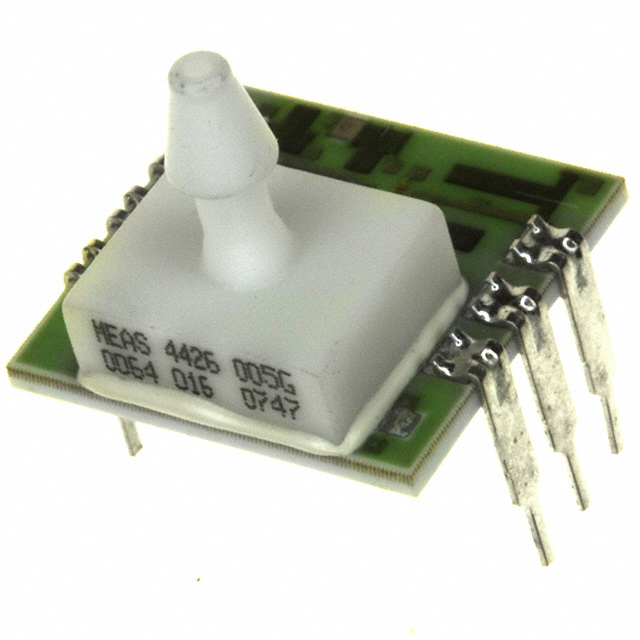

4426-005G

Obsolete

TE Connectivity Measurement Specialties

SENSOR 5PSIG 0.13" .06V

Search across all available documentation for this part.

Obsolete

TE Connectivity Measurement Specialties

SENSOR 5PSIG 0.13" .06V

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Termination Style	Features	Operating Pressure [custom]	Operating Pressure [custom]	Voltage - Supply [Min]	Voltage - Supply [Max]	Output Type	Mounting Type	Port Style	Accuracy	Maximum Pressure [Max]	Maximum Pressure [Max]	Output [Max]	Output [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Port Size	Applications	Output	Operating Pressure	Operating Pressure	Pressure Type	Maximum Pressure
TE Connectivity Measurement Specialties 4426-015A	6-DIP Module	PC Pin	Temperature Compensated	15 PSI	103.42 kPa	12 V	20 V	Wheatstone Bridge	Through Hole	Barbed	0.15 %	310.26 kPa	45 PSI	90 mV	0 mV	-25 °C	85 °C	0.13 " 3.4 mm	Board Mount
TE Connectivity Measurement Specialties 4426-005G	6-DIP Module	PC Pin	Temperature Compensated			12 V	20 V	Wheatstone Bridge	Through Hole	Barbed	0.15 %		15 PSI	60 mV	0 mV	-25 °C	85 °C	0.13 " 3.4 mm	Board Mount	12V	34.47 kPa	5 PSI	Vented Gauge	103.42 kPa

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 36.14

General part information

Pressure Sensor 5PSI (34.47kPa) Vented Gauge Male - 0.13" (3.4mm) Tube 0 mV ~ 60 mV (12V) 6-DIP Module
