KX14-100K2DE

Obsolete

JAE Electronics

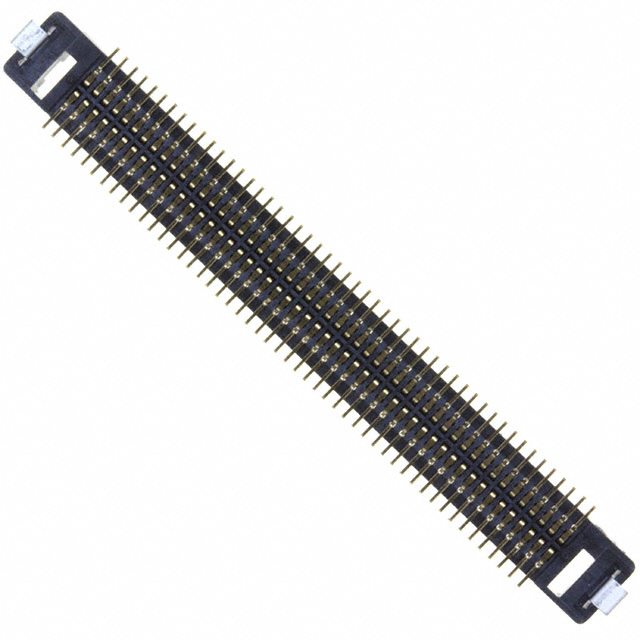

CONN RCPT 100POS SMD GOLD

Search across all available documentation for this part.

Obsolete

JAE Electronics

CONN RCPT 100POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	KX14-100K2DE

Connector Type	Receptacle, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Features	Solder Retention, Board Guide
Height Above Board	3.55 mm
Height Above Board	0.14 in
Mated Stacking Heights	4 mm, 6 mm, 5 mm
Mounting Type	Surface Mount
Number of Positions	100
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

Part	Height Above Board	Height Above Board	Number of Rows	Features	Contact Finish	Pitch [x]	Pitch [x]	Mounting Type	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Mated Stacking Heights
JAE Electronics KX14-100K2DE	3.55 mm	0.14 in	2	Board Guide Solder Retention	Gold	0.8 mm	0.031 in	Surface Mount	Receptacle Outer Shroud Contacts	4 Áin	0.1 Ám	100	4 mm 5 mm 6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

100 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Gold
