807-035-459-107

Active

EDAC Inc.

CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

807-035-459-107

Active

EDAC Inc.

CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	807-035-459-107

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Top Opening, Flush Mount, M3, Threaded Insert
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole, Right Angle
Number of Positions	35
Number of Positions/Bay/Row [custom]	35
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Solder
Termination Rows	1

807-035 Series

...

Part	Card Type	Number of Positions	Read Out	Contact Material	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Termination Rows	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Positions/Bay/Row [custom]	Number of Rows	Material - Insulation	Color	Flange Feature	Termination	Pitch [x]	Pitch [x]	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Gender	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 807-035-521-108	Non Specified - Dual Edge	70	Dual	Copper Alloy	Through Hole	10 Áin	0.25 Ám	Gold	1	1.37 mm	0.054 "	1.78 mm	0.07 in	35	2	Diallyl Phthalate (DAP)	Green	4-40 Flush Mount Threaded Insert Top Opening	Solder	0.156 in	3.96 mm	Semi Bellows	125 °C	-40 °C	Female
EDAC Inc. 807-035-401-108	Non Specified - Dual Edge	70	Dual	Copper Alloy	Through Hole			Tin	1	1.37 mm	0.054 "	1.78 mm	0.07 in	35	2	Diallyl Phthalate (DAP)	Green	4-40 Flush Mount Threaded Insert Top Opening	Solder Eyelet(s)	0.156 in	3.96 mm	Semi Bellows	125 °C	-40 °C	Female
EDAC Inc. 807-035-421-107	Non Specified - Dual Edge	70	Dual	Copper Alloy	Through Hole			Tin	1	1.37 mm	0.054 "	1.78 mm	0.07 in	35	2	Diallyl Phthalate (DAP)	Green	Flush Mount M3 Threaded Insert Top Opening	Solder	0.156 in	3.96 mm	Semi Bellows	125 °C	-40 °C	Female
EDAC Inc. 807-035-547-103	Non Specified - Single Edge	35	Single	Copper Alloy	Through Hole	10 Áin	0.25 Ám	Gold	1	1.37 mm	0.054 "	1.78 mm	0.07 in	35	1	Diallyl Phthalate (DAP)	Green	Floating Bobbin Flush Mount	Wire Wrap	0.156 in	3.96 mm	Semi Bellows	125 °C	-40 °C	Female	0.116 in	2.95 mm
EDAC Inc. 807-035-431-102	Non Specified - Single Edge	35	Single	Copper Alloy	Through Hole			Tin	1	1.37 mm	0.054 "	1.78 mm	0.07 in	35	1	Diallyl Phthalate (DAP)	Green	Flush Mount Top Opening Unthreaded	Solder	0.156 in	3.96 mm	Semi Bellows	125 °C	-40 °C	Female	0.128 "	3.25 mm
EDAC Inc. 807-035-431-103	Non Specified - Single Edge	35	Single	Copper Alloy	Through Hole			Tin	1	1.37 mm	0.054 "	1.78 mm	0.07 in	35	1	Diallyl Phthalate (DAP)	Green	Floating Bobbin Flush Mount	Solder	0.156 in	3.96 mm	Semi Bellows	125 °C	-40 °C	Female	0.116 in	2.95 mm
EDAC Inc. 807-035-458-102	Non Specified - Single Edge	35	Single	Copper Alloy	Through Hole Right Angle			Tin	1	1.37 mm	0.054 "	1.78 mm	0.07 in	35	1	Diallyl Phthalate (DAP)	Green	Flush Mount Top Opening Unthreaded	Solder	0.156 in	3.96 mm	Semi Bellows	125 °C	-40 °C	Female	0.128 "	3.25 mm
EDAC Inc. 807-035-547-101	Non Specified - Single Edge	35	Single	Copper Alloy	Through Hole	10 Áin	0.25 Ám	Gold	1	1.37 mm	0.054 "	1.78 mm	0.07 in	35	1	Diallyl Phthalate (DAP)	Green		Wire Wrap	0.156 in	3.96 mm	Semi Bellows	125 °C	-40 °C	Female
EDAC Inc. 807-035-459-107	Non Specified - Single Edge	35	Single	Copper Alloy	Through Hole Right Angle			Tin	1	1.37 mm	0.054 "	1.78 mm	0.07 in	35	1	Diallyl Phthalate (DAP)	Green	Flush Mount M3 Threaded Insert Top Opening	Solder	0.156 in	3.96 mm	Semi Bellows	125 °C	-40 °C	Female
EDAC Inc. 807-035-541-101	Non Specified - Dual Edge	70	Dual	Copper Alloy	Through Hole	10 Áin	0.25 Ám	Gold	1	1.37 mm	0.054 "	1.78 mm	0.07 in	35	2	Diallyl Phthalate (DAP)	Green		Wire Wrap	0.156 in	3.96 mm	Semi Bellows	125 °C	-40 °C	Female

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 148.52
Newark	Each	1	$ 178.23
		100	$ 110.05
		250	$ 99.55
		500	$ 88.50
		1000	$ 71.63

Description

General part information

807-035 Series

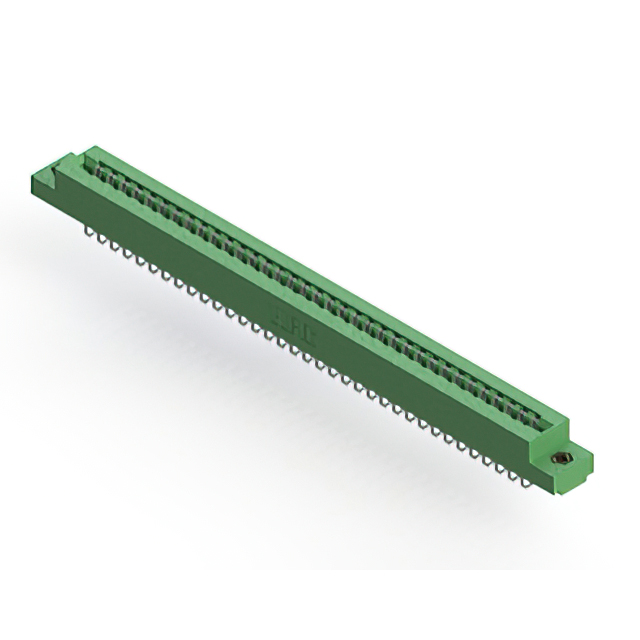

35 Position Female Connector Non Specified - Single Edge Tin 0.156" (3.96mm) Green
