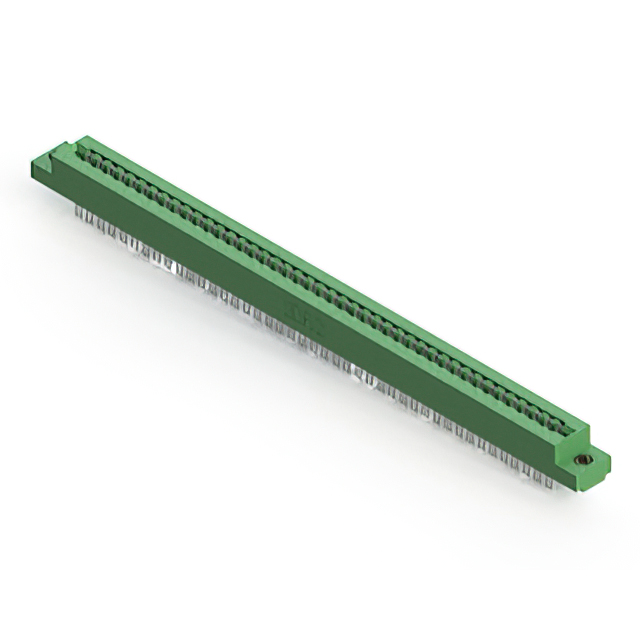

307-086-400-208
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 86 CONTACTS, PANEL MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
307-086-400-208
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 86 CONTACTS, PANEL MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 307-086-400-208 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 86 |
| Number of Positions/Bay/Row [custom] | 43 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 2 |
307-086 Series
...
| Part | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Card Type | Termination Rows | Color | Contact Material | Contact Type | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Material - Insulation | Number of Positions | Pitch [x] | Pitch [x] | Number of Positions/Bay/Row [custom] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish | Gender | Mounting Type | Termination | Read Out | Features | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2 | -40 °C | 105 ░C | Non Specified - Dual Edge | 2 | Green | Copper Alloy | Semi Bellows | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Polyester Thermoplastic | 86 | 0.156 in | 3.96 mm | 43 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Tin | Female | Through Hole Right Angle | Solder | Dual | |||
EDAC Inc. | 2 | -40 °C | 105 ░C | Non Specified - Dual Edge | 2 | Green | Copper Alloy | Semi Bellows | 4-40 Flush Mount Threaded Insert Top Opening | Polyester Thermoplastic | 86 | 0.156 in | 3.96 mm | 43 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Female | Through Hole | Solder Eyelet(s) | Dual | Card Guides | 10 Áin | 0.25 Ám | ||
EDAC Inc. | 2 | -40 °C | 105 ░C | Non Specified - Dual Edge | 2 | Green | Copper Alloy | Semi Bellows | 4-40 Flush Mount Threaded Insert Top Opening | Polyester Thermoplastic | 86 | 0.156 in | 3.96 mm | 43 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Female | Through Hole | Solder | Dual | Card Guides | 10 Áin | 0.25 Ám | ||
EDAC Inc. | 2 | -40 °C | 105 ░C | Non Specified - Dual Edge | 2 | Green | Copper Alloy | Semi Bellows | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | Polyester Thermoplastic | 86 | 0.156 in | 3.96 mm | 43 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Female | Through Hole | Solder | Dual | 10 Áin | 0.25 Ám | |
EDAC Inc. | 2 | -40 °C | 105 ░C | Non Specified - Dual Edge | 2 | Green | Copper Alloy | Semi Bellows | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | Polyester Thermoplastic | 86 | 0.156 in | 3.96 mm | 43 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Tin | Female | Board Edge Straddle Mount | Solder Eyelet(s) | Dual | Card Extender | ||
EDAC Inc. | 2 | -40 °C | 105 ░C | Non Specified - Dual Edge | 2 | Green | Copper Alloy | Semi Bellows | 4-40 Flush Mount Threaded Insert Top Opening | Polyester Thermoplastic | 86 | 0.156 in | 3.96 mm | 43 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Female | Through Hole | Solder | Dual | Card Guides | 10 Áin | 0.25 Ám | ||
EDAC Inc. | 2 | -40 °C | 105 ░C | Non Specified - Dual Edge | 2 | Green | Copper Alloy | Semi Bellows | 4-40 Flush Mount Threaded Insert Top Opening | Polyester Thermoplastic | 86 | 0.156 in | 3.96 mm | 43 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Tin | Female | Through Hole | Solder Eyelet(s) | Dual | |||||
EDAC Inc. | 2 | -40 °C | 105 ░C | Non Specified - Dual Edge | 2 | Green | Copper Alloy | Semi Bellows | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | Polyester Thermoplastic | 86 | 0.156 in | 3.96 mm | 43 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Tin | Female | Through Hole | Solder | Dual | |||
EDAC Inc. | 2 | -40 °C | 105 ░C | Non Specified - Dual Edge | 2 | Green | Copper Alloy | Semi Bellows | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | Polyester Thermoplastic | 86 | 0.156 in | 3.96 mm | 43 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Female | Through Hole | Solder Eyelet(s) | Dual | 10 Áin | 0.25 Ám | |
EDAC Inc. | 2 | -40 °C | 105 ░C | Non Specified - Dual Edge | 2 | Green | Copper Alloy | Semi Bellows | Polyester Thermoplastic | 86 | 0.156 in | 3.96 mm | 43 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Female | Through Hole | Solder Eyelet(s) | Dual | 10 Áin | 0.25 Ám |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
307-086 Series
86 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Green
