2HT-500-2-YL-S-2

Active

BRADY

SLEEVE, 0.5 IN DIA X 1 IN W

Search across all available documentation for this part.

Active

BRADY

SLEEVE, 0.5 IN DIA X 1 IN W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1324.79

General part information

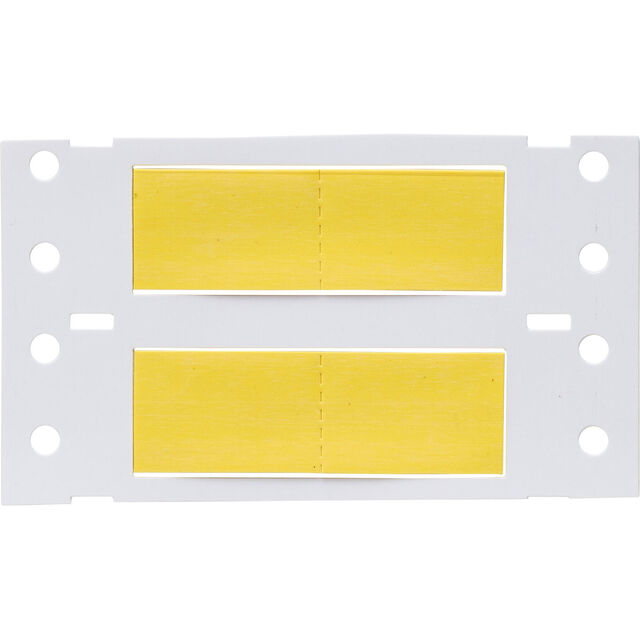

Yellow Heat Shrinkable Label 1.00" W x 0.50" Dia (25.4mm x 12.7mm); Cable O.D. 0.25" ~ 0.45" (6.4mm ~ 11.4mm)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	2HT-500-2-YL-S-2	2HT-500 Series

Color	Yellow	White, Black, Yellow
Label Size	-	0.25 - 6.4 mm
Label Size	-	0.45 - 11.4 mm
Label Size [diameter]	0.5 "	0.5 "
Label Size [diameter]	6.4 mm	6.4 mm
Label Size [diameter]	0.25 in, 12.7 mm	0.25 - 12.7 mm
Label Size [Max] [diameter]	0.45 in	0.45 in
Label Size [Max] [diameter]	11.4 mm	11.4 mm
Label Size [x]	25.4 mm	25.4 - 50.8 mm
Label Size [x]	1 in	1 in
Label Type	Heat Shrinkable	Heat Shrinkable
Material	Polyvinylidene Fluoride (PVDF)	Polyvinylidene Fluoride (PVDF)
Operating Temperature [Max]	225 °C	225 °C
Operating Temperature [Min]	-55 °C	-55 °C

SLEEVE, 0.5 IN DIA X 2 IN W

Part	Color	Label Type	Material	Label Size [Min]	Label Size [x]	Label Size [diameter]	Label Size [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Label Size [Max] [diameter]	Label Size [diameter]	Label Size [diameter]	Label Size [Max] [diameter]	Label Size [x]
BRADY 2HT-500-2-WT-J	White	Heat Shrinkable	Polyvinylidene Fluoride (PVDF)	0.25 ", 6.4 mm	50.8 mm	12.7 mm	0.45 ", 11.4 mm	-55 °C	225 °C
BRADY 2HT-500-2-BK-S	Black	Heat Shrinkable	Polyvinylidene Fluoride (PVDF)	0.25 ", 6.4 mm	50.8 mm	12.7 mm	0.45 ", 11.4 mm	-55 °C	225 °C
BRADY 2HT-500-2-WT-S	White	Heat Shrinkable	Polyvinylidene Fluoride (PVDF)	0.25 ", 6.4 mm	50.8 mm	12.7 mm	0.45 ", 11.4 mm	-55 °C	225 °C
BRADY 2HT-500-2-YL-S	Yellow	Heat Shrinkable	Polyvinylidene Fluoride (PVDF)	0.25 ", 6.4 mm	50.8 mm	12.7 mm	0.45 ", 11.4 mm	-55 °C	225 °C
BRADY 2HT-500-2-WT-S-2	White	Heat Shrinkable	Polyvinylidene Fluoride (PVDF)		25.4 mm	0.25 in, 12.7 mm		-55 °C	225 °C	0.45 in	0.5 "	6.4 mm	11.4 mm	1 in
BRADY 2HT-500-2-BK-S-2	Black	Heat Shrinkable	Polyvinylidene Fluoride (PVDF)		25.4 mm	0.25 in, 12.7 mm		-55 °C	225 °C	0.45 in	0.5 "	6.4 mm	11.4 mm	1 in
BRADY 2HT-500-2-YL-S-2	Yellow	Heat Shrinkable	Polyvinylidene Fluoride (PVDF)		25.4 mm	0.25 in, 12.7 mm		-55 °C	225 °C	0.45 in	0.5 "	6.4 mm	11.4 mm	1 in
