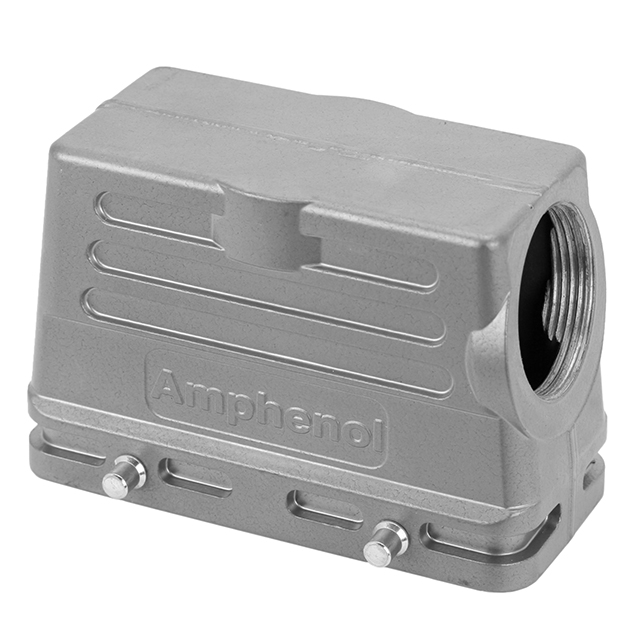

C146 67R016 500 8 F
ActiveAmphenol Tuchel Industrial
CONN HOOD SIDE ENTRY SZE16 M32
Deep-Dive with AI
Search across all available documentation for this part.
C146 67R016 500 8 F
ActiveAmphenol Tuchel Industrial
CONN HOOD SIDE ENTRY SZE16 M32
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C146 67R016 500 8 F |
|---|---|
| Connector Type | Hood |
| Housing Color | Gray |
| Housing Finish | Powder Coated |
| Housing Material | Die Cast, Aluminum |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Lock Location | Locking Clip (2) on Base Bottom |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Size | E16 |
| Size / Dimension [x] | 3.681 " |
| Size / Dimension [x] | 93.5 mm |
| Size / Dimension [y] | 1.693 in |
| Size / Dimension [y] | 43 mm |
| Size / Dimension [z] | 76 mm |
| Size / Dimension [z] | 2.992 in |
| Style | Side Entry |
| Thread Size | M32 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 22.32 | |
Description
General part information
C146 67R016 Series
Hood Connector Side Entry M32 E16 IP67 - Dust Tight, Waterproof
Documents
Technical documentation and resources
No documents available
