Q-27067000M001M

Active

Amphenol Custom Cable

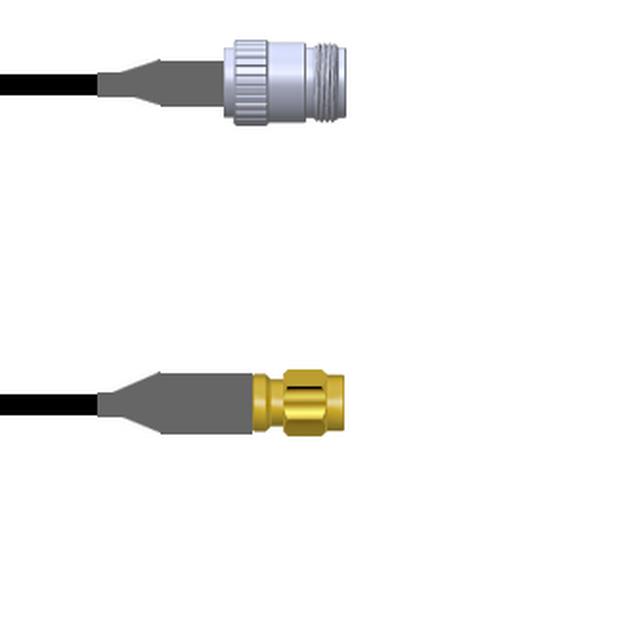

CBL ASSY RPSMA-NTYPE PL-JK 3.3'

Deep-Dive with AI

Search across all available documentation for this part.

Q-27067000M001M

Active

Amphenol Custom Cable

CBL ASSY RPSMA-NTYPE PL-JK 3.3'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-27067000M001M

1st Connector	RP-SMA Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	N-Type Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	LMR 240
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	1 m
Length	3.3 ft
Length	39.4 in
Overall Impedance	50 Ohms
Style	RP-SMA to N-Type

Q-270670 Series

Part	2nd Connector	Overall Impedance	1st Connector Mounting Type	Style	1st Connector	2nd Contact Gender	Features	2nd Connector Mounting Type	Frequency - Max [Max]	Cable Type	1st Contact Gender	Length	Length	Length	Color	Length [x]	Length [x]
Amphenol Custom Cable Q-27067000M048i	N-Type Jack	50 Ohms	Free Hanging (In-Line)	RP-SMA to N-Type	RP-SMA Plug	Female	Shielded	Free Hanging (In-Line)	6000 MHz	LMR 240	Female	1200 mm	4 ft	48 in	Black
Amphenol Custom Cable Q-27067000M036i	N-Type Jack	50 Ohms	Free Hanging (In-Line)	RP-SMA to N-Type	RP-SMA Plug	Female	Shielded	Free Hanging (In-Line)	6000 MHz	LMR 240	Female	91.44 cm		36 in	Black
Amphenol Custom Cable Q-27067000M003M	N-Type Jack	50 Ohms	Free Hanging (In-Line)	RP-SMA to N-Type	RP-SMA Plug	Female	Shielded	Free Hanging (In-Line)	6000 MHz	LMR 240	Female	3 m	9.8 '	118.1 in	Black
Amphenol Custom Cable Q-27067000M018i	N-Type Jack	50 Ohms	Free Hanging (In-Line)	RP-SMA to N-Type	RP-SMA Plug	Female	Shielded	Free Hanging (In-Line)	6000 MHz	LMR 240	Female				Black	457.2 mm	457.2 mm
Amphenol Custom Cable Q-27067000M1.5M	N-Type Jack	50 Ohms	Free Hanging (In-Line)	RP-SMA to N-Type	RP-SMA Plug	Female	Shielded	Free Hanging (In-Line)	6000 MHz	LMR 240	Female	1.5 m	4.9 ft	59.1 in	Black
Amphenol Custom Cable Q-27067000M084i	N-Type Jack	50 Ohms	Free Hanging (In-Line)	RP-SMA to N-Type	RP-SMA Plug	Female	Shielded	Free Hanging (In-Line)	6000 MHz	LMR 240	Female	2.1 m	7 ft	84 in	Black
Amphenol Custom Cable Q-27067000M001M	N-Type Jack	50 Ohms	Free Hanging (In-Line)	RP-SMA to N-Type	RP-SMA Plug	Female	Shielded	Free Hanging (In-Line)	6000 MHz	LMR 240	Female	1 m	3.3 ft	39.4 in	Black
Amphenol Custom Cable Q-27067000M2.5M	N-Type Jack	50 Ohms	Free Hanging (In-Line)	RP-SMA to N-Type	RP-SMA Plug	Female	Shielded	Free Hanging (In-Line)	6000 MHz	LMR 240	Female	2.5 m	8.2 '	98.4 in	Black
Amphenol Custom Cable Q-27067000M072i	N-Type Jack	50 Ohms	Free Hanging (In-Line)	RP-SMA to N-Type	RP-SMA Plug	Female	Shielded	Free Hanging (In-Line)	6000 MHz	LMR 240	Female	1.8 m	6 ft	72 in	Black
Amphenol Custom Cable Q-27067000M108i	N-Type Jack	50 Ohms	Free Hanging (In-Line)	RP-SMA to N-Type	RP-SMA Plug	Female	Shielded	Free Hanging (In-Line)	6000 MHz	LMR 240	Female	2.7 m	9 ft	108 in	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 111.74
		25	$ 109.61
		50	$ 107.47
		100	$ 105.34
		250	$ 103.20

Description

General part information

Q-270670 Series

Cable Assembly Coaxial RP-SMA to N-Type LMR 240 39.4" (1.0m) 3.3'

Documents

Technical documentation and resources

No documents available
