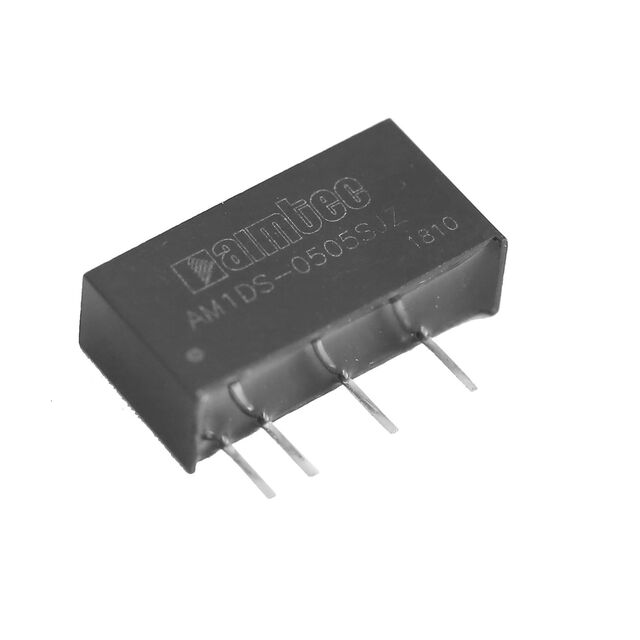

AM1DS-0524SH30JZ

Active

aimtec

DC DC CONVERTER 24V 1W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AM1DS-0524SH30JZ

Active

aimtec

DC DC CONVERTER 24V 1W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AM1DS-0524SH30JZ	AM1DS Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	-	cULus, cURus
Current - Output (Max)	-	33.33 - 152 mA
Current - Output (Max)	-	33.33 - 152 mA
Current - Output (Max)	-	42 mA
Current - Output (Max)	-	21 mA
Current - Output (Max) [Max]	42 mA	21 - 303 mA
Efficiency	85 %	71 - 85 %
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1 - 2
Operating Temperature [Max]	105 ░C	85 - 105 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	-	6-SIP Module, 4 Leads, 7-SIP Module, 4 Leads, 6-SIP Module, 5 Leads, 7-SIP Module, 6 Leads, 7-SIP Module, 5 Leads
Size / Dimension	-	6 mm
Size / Dimension	-	10 mm
Size / Dimension	-	19.5 mm
Size / Dimension [x]	0.77 in	0.76 - 0.77 "
Size / Dimension [x]	19.7 mm	0.77 - 19.7 mm
Size / Dimension [y]	0.24 "	0.24 "
Size / Dimension [y]	6 mm	0.24 - 6 mm
Size / Dimension [z]	10.2 mm	0.39 - 10.2 mm
Size / Dimension [z]	0.4 "	0.37 - 0.4 in
Supplier Device Package	-	7-SIP
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	5.5 V	3.6 - 26.4 V
Voltage - Input (Min) [Min]	4.5 V	3 - 21.6 V
Voltage - Isolation	3000 V	1.5 - 6000 V
Voltage - Output 1	24 V	3.3 - 24 V
Voltage - Output 1	-	3.3 - 24 V
Voltage - Output 1	-	-24 - -3.3 V
Voltage - Output 2	-	-24 - -3.3 V

AM1DS Series

DC DC CONVERTER 5V 1W

Part	Mounting Type	Voltage - Output 1	Applications	Voltage - Input (Max) [Max]	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Current - Output (Max) [Max]	Efficiency	Voltage - Input (Min) [Min]	Number of Outputs	Type	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Package / Case
aimtec AM1DS-1205SH40Z	Through Hole	5 V	ITE (Commercial)	13.2 V	4000 V	85 °C	-40 °C	0.76 "	0.39 in	10 mm	19.5 mm	6 mm	0.24 "	200 mA	74 %	10.8 V	1	Isolated Module
aimtec AM1DS-1212DH40Z	Through Hole		ITE (Commercial)	13.2 V	4000 V	85 °C	-40 °C	0.76 "	0.39 in	10 mm	19.5 mm	6 mm	0.24 "		76 %	10.8 V	2	Isolated Module	12 V	-12 V	-12 V	41.67 mA	41.67 mA
aimtec AM1DS-1205SZ	Through Hole	5 V	ITE (Commercial)	13.2 V	1000 V	85 °C	-40 °C	0.76 "	0.39 in	10 mm	19.5 mm	6 mm	0.24 "	200 mA	74 %	10.8 V	1	Isolated Module
aimtec AM1DS-0515DH30Z	Through Hole		ITE (Commercial)	5.5 V	3000 V	85 °C	-40 °C	0.76 "	0.39 in	10 mm	19.5 mm	6 mm	0.24 "		71 %	4.5 V	2	Isolated Module	15 V	-15 V	-15 V	33.33 mA	33.33 mA
aimtec AM1DS-0524SH30JZ	Through Hole	24 V	ITE (Commercial)	5.5 V	3000 V	105 ░C	-40 °C	0.77 in	0.4 "	10.2 mm	19.7 mm	6 mm	0.24 "	42 mA	85 %	4.5 V	1	Isolated Module
aimtec AM1DS-1215SH30Z	Through Hole	15 V	ITE (Commercial)	13.2 V	3000 V	85 °C	-40 °C			0.39 in	0.77 "	0.24 in		66.7 mA	75 %	10.8 V	1	Isolated Module						6 mm	10 mm	19.5 mm
aimtec AM1DS-0515DH40Z	Through Hole		ITE (Commercial)	5.5 V	4000 V	85 °C	-40 °C	0.76 "	0.39 in	10 mm	19.5 mm	6 mm	0.24 "		71 %	4.5 V	2	Isolated Module	15 V	-15 V	-15 V	33.33 mA	33.33 mA
aimtec AM1DS-0515SH52Z	Through Hole	15 V	ITE (Commercial)	5.5 V	5.2 kV	85 °C	-40 °C	0.76 "	0.39 in	10 mm	19.5 mm	6 mm	0.24 "	66.7 mA	74 %	4.5 V	1	Isolated Module
aimtec AM1DS-0505SH60Z	Through Hole	5 V	ITE (Commercial)	5.5 V	6000 V	85 °C	-40 °C	0.76 "	0.39 in	10 mm	19.5 mm	6 mm	0.24 "	200 mA	72 %	4.5 V	1	Isolated Module
aimtec AM1DS-0515SJZ	Through Hole	15 V	ITE (Commercial)	5.5 V	1.5 kV	105 C	-40 °C	0.77 in	0.38 in	9.6 mm	19.5 mm	6 mm	0.24 "	67 mA	83 %	4.5 V	1	Isolated Module									6-SIP Module, 4 Leads

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

AM1DS Series

Isolated Module DC DC Converter 1 Output 24V 42mA 4.5V - 5.5V Input
