CCH100-S10-D

Active

Panduit Corp

HEAVY DUTY FIXED DIAMETER CABLE CLAMP ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Panduit Corp

HEAVY DUTY FIXED DIAMETER CABLE CLAMP ROHS COMPLIANT: YES

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

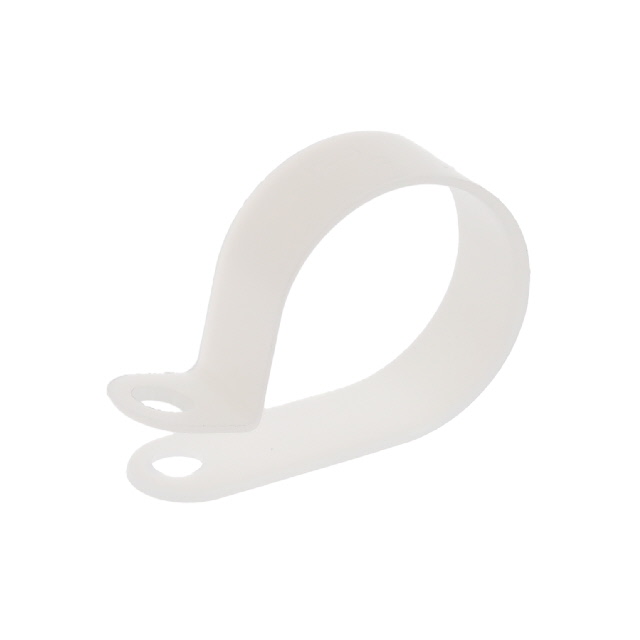

Cable Clamp, P-Type Natural Fastener 1.000" (25.40mm)

Technical documentation and resources

Specification	CCH100-S10-D	CCH100 Series

Bundle Center to Mounting Center	0.91 in	0.91 in
Bundle Center to Mounting Center	23.11 mm	23.11 mm
Color	Natural	Natural, Black
Features	-	Weather Resistant
Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2	UL94 V-2
Material Thickness	0.05 in	0.05 in
Material Thickness	1.27 mm	1.27 mm
Mounting Type	Fastener	Fastener
Opening Size [custom]	1 in	1 in
Opening Size [custom]	25.4 mm	25.4 mm
Panel Hole Size	5.16 mm	5.16 mm
Panel Hole Size	0.203 in	0.203 in
Screw Size	M5	M5
Screw Size	#10	#10
Type	Clamp, P-Type	Clamp, P-Type

Part	Type	Material Thickness	Material Thickness	Mounting Type	Panel Hole Size	Panel Hole Size	Screw Size	Screw Size	Bundle Center to Mounting Center	Bundle Center to Mounting Center	Material Flammability Rating	Color	Opening Size [custom]	Opening Size [custom]	Material	Features
Panduit Corp CCH100-S10-D	Clamp, P-Type	0.05 in	1.27 mm	Fastener	5.16 mm	0.203 in	M5	#10	0.91 in	23.11 mm	UL94 V-2	Natural	1 in	25.4 mm	Polyamide (PA66), Nylon 6/6
Panduit Corp CCH100-S10-D0	Clamp, P-Type	0.05 in	1.27 mm	Fastener	5.16 mm	0.203 in	M5	#10	0.91 in	23.11 mm	UL94 V-2	Black	1 in	25.4 mm	Polyamide (PA66), Nylon 6/6	Weather Resistant
Panduit Corp CCH100-S10-C0	Clamp, P-Type	0.05 in	1.27 mm	Fastener	5.16 mm	0.203 in	M5	#10	0.91 in	23.11 mm	UL94 V-2	Black	1 in	25.4 mm	Polyamide (PA66), Nylon 6/6	Weather Resistant
