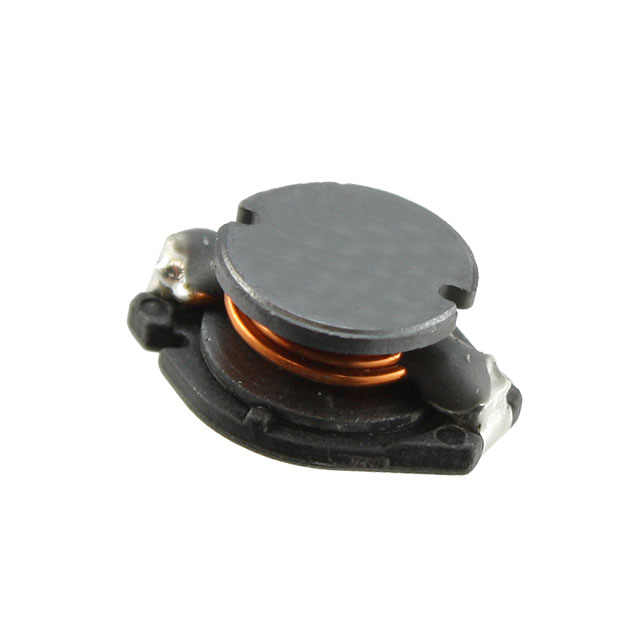

SDR1005-102KL

Active

Bourns Inc.

INDUCTOR POWER UNSHIELDED WIREWOUND 1000UH 10% 1KHZ 78Q-FACTOR FERRITE 0.3A 3.9OHM DCR T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

SDR1005-102KL

Active

Bourns Inc.

INDUCTOR POWER UNSHIELDED WIREWOUND 1000UH 10% 1KHZ 78Q-FACTOR FERRITE 0.3A 3.9OHM DCR T/R

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SDR1005-102KL

Current - Saturation (Isat)	350 mA
Current Rating (Amps)	300 mA
DC Resistance (DCR) [Max]	3.9 Ohm
Frequency - Self Resonant	2 MHz
Height - Seated (Max) [Max] [z]	0.197 in
Height - Seated (Max) [Max] [z]	5 mm
Inductance	1 mH
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Nonstandard
Q @ Freq	122 kHz, 78
Shielding	Unshielded
Size / Dimension [x]	12.7 mm
Size / Dimension [x]	0.5 in
Size / Dimension [y]	10 mm
Size / Dimension [y]	0.394 in
Tolerance	10 %
Type	Wirewound, Drum Core

SDR1005 Series

Part	DC Resistance (DCR) [Max]	Current Rating (Amps)	Frequency - Self Resonant	Material - Core	Inductance	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Type	Current - Saturation (Isat)	Q @ Freq	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Shielding	Tolerance	DC Resistance (DCR)
Bourns Inc. SDR1005-1R5ML	9 mOhm	6.5 A	95 MHz	Ferrite	1.5 µH	125 °C	-40 °C	Nonstandard	12.7 mm	10 mm	0.394 in	0.5 in	Surface Mount	Drum Core Wirewound	8 A	3 MHz 50	0.197 in	5 mm	Unshielded	20 %
Bourns Inc. SDR1005-332KL		160 mA	1 MHz	Ferrite	3300 µH	125 °C	-40 °C	Nonstandard	12.7 mm	10 mm	0.394 in	0.5 in	Surface Mount	Drum Core Wirewound	180 mA	106 128 kHz	0.197 in	5 mm	Unshielded	10 %	14 Ohm
Bourns Inc. SDR1005-103KL	39 Ohm	100 mA	1 MHz	Ferrite	10 mH	125 °C	-40 °C	Nonstandard	12.7 mm	10 mm	0.394 in	0.5 in	Surface Mount	Drum Core Wirewound	110 mA	102 138 kHz	0.197 in	5 mm	Unshielded	10 %
Bourns Inc. SDR1005-6R8ML	30 mOhm	3.4 A	31 MHz	Ferrite	6.8 µH	125 °C	-40 °C	Nonstandard	12.7 mm	10 mm	0.394 in	0.5 in	Surface Mount	Drum Core Wirewound	4.5 A	2 MHz 56	0.197 in	5 mm	Unshielded	20 %
Bourns Inc. SDR1005-103K	39 Ohm	100 mA	1 MHz	Ferrite	10 mH	125 °C	-40 °C	Nonstandard	12.7 mm	10 mm	0.394 in	0.5 in	Surface Mount	Drum Core Wirewound	110 mA	102 138 kHz	0.197 in	5 mm	Unshielded	10 %
Bourns Inc. SDR1005-470KL	190 mOhm	1.4 A	12 MHz	Ferrite	47 µH	125 °C	-40 °C	Nonstandard	12.7 mm	10 mm	0.394 in	0.5 in	Surface Mount	Drum Core Wirewound	1.6 A	2.2 MHz 30	0.197 in	5 mm	Unshielded	10 %
Bourns Inc. SDR1005-152KL	6.3 Ohm	0.25 A	2 MHz	Ferrite	1.5 mH	125 °C	-40 °C	Nonstandard	12.7 mm	10 mm	0.394 in	0.5 in	Surface Mount	Drum Core Wirewound		97 131 kHz	0.197 in	5 mm	Unshielded	10 %
Bourns Inc. SDR1005-2R5ML		5.5 Amps	56 MHz	Ferrite	2.5 µH	125 °C	-40 °C	Nonstandard	12.7 mm	10 mm	0.394 in	0.5 in	Surface Mount	Drum Core Wirewound	7 A	3 MHz 49	0.197 in	5 mm	Unshielded	20 %	12 mOhm
Bourns Inc. SDR1005-152JL	6.3 Ohm	0.25 A	2 MHz	Ferrite	1.5 mH	125 °C	-40 °C	Nonstandard	12.7 mm	10 mm	0.394 in	0.5 in	Surface Mount	Drum Core Wirewound		97 131 kHz	0.197 in	5 mm	Unshielded	5 %
Bourns Inc. SDR1005-102KL	3.9 Ohm	300 mA	2 MHz	Ferrite	1 mH	125 °C	-40 °C	Nonstandard	12.7 mm	10 mm	0.394 in	0.5 in	Surface Mount	Drum Core Wirewound	350 mA	78 122 kHz	0.197 in	5 mm	Unshielded	10 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	600	$ 0.35
Digikey	Cut Tape (CT)	1	$ 0.80
		10	$ 0.62
		25	$ 0.56
		50	$ 0.52
		100	$ 0.48
		250	$ 0.44
	Digi-Reel®	1	$ 0.80
		10	$ 0.62
		25	$ 0.56
		50	$ 0.52
		100	$ 0.48
		250	$ 0.44
	Tape & Reel (TR)	600	$ 0.40
		1200	$ 0.37
		1800	$ 0.35
		3000	$ 0.33
		4200	$ 0.32
		6000	$ 0.31
		15000	$ 0.29
Newark	Each (Supplied on Full Reel)	1200	$ 0.34
		2400	$ 0.32
		3600	$ 0.32
		6000	$ 0.31
		12000	$ 0.31

Description

General part information

SDR1005 Series

1 mH Unshielded Drum Core, Wirewound Inductor 300 mA 3.9Ohm Max Nonstandard

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet
