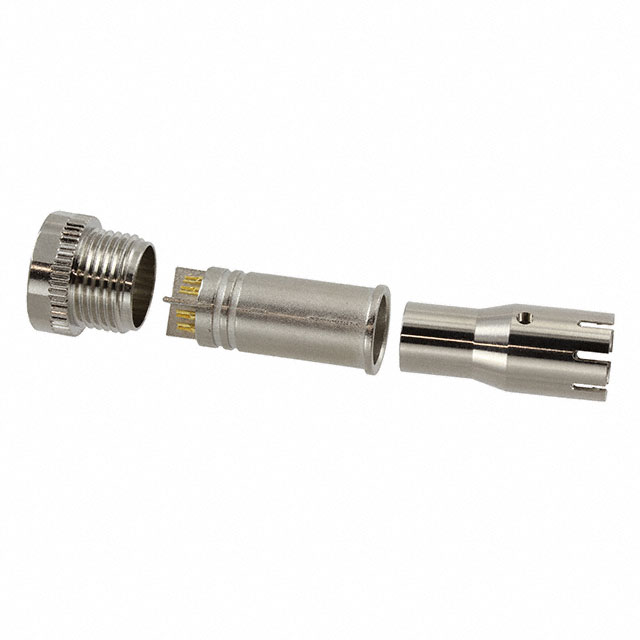

858-X08-103RLS4 - 858-X08-103RLS4

858-X08-103RLS4

Active
MH Connectors

SENSOR CONNECTOR, VULCON SERIES, M12, MALE, 8 POSITIONS, SOLDER PIN, STRAIGHT CABLE MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDrawing ENWhite Papers EN+3
858-X08-103RLS4 - 858-X08-103RLS4

858-X08-103RLS4

Active
MH Connectors

SENSOR CONNECTOR, VULCON SERIES, M12, MALE, 8 POSITIONS, SOLDER PIN, STRAIGHT CABLE MOUNT

Deep-Dive with AI

DocumentsDrawing ENWhite Papers EN+3

Technical Specifications

Parameters and characteristics for this part

Specification858-X08-103RLS4
Backshell Material, PlatingNickel, Brass
Cable Opening [diameter]9.5 mm
Cable Opening [diameter]0.374 in
ColorSilver
Connector TypeReceptacle, Male Pins
Contact Finish - MatingGold
Contact Finish Thickness - Mating10 çin
Contact Finish Thickness - Mating0.25 çm
Contact MaterialBrass
Current Rating (Amps)0.5 A
FeaturesBackshell
Ingress ProtectionIP67 - Dust Tight, Waterproof
Insert MaterialPolybutylene Terephthalate (PBT)
Material Flammability RatingUL94 V-0
Mounting TypeFree Hanging (In-Line)
Number of Positions8
Operating Temperature [Max]85 °C
Operating Temperature [Min]-40 °C
OrientationX
Primary MaterialMetal
Shell FinishNickel
Shell MaterialZinc Alloy
Shell Size - InsertM12-8
ShieldingShielded
Voltage Rating50 VAC, 60 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 30.41
10$ 23.47
25$ 21.27
40$ 20.24
80$ 18.85
230$ 16.97
440$ 15.96
NewarkEach 1$ 26.37
5$ 24.03
10$ 21.69
25$ 19.77
50$ 18.80
100$ 18.46

Description

General part information

858-X08 Series

8 Position Circular Connector Receptacle, Male Pins Solder Cup
