50.011 PA7035

Active

Jacob GmbH

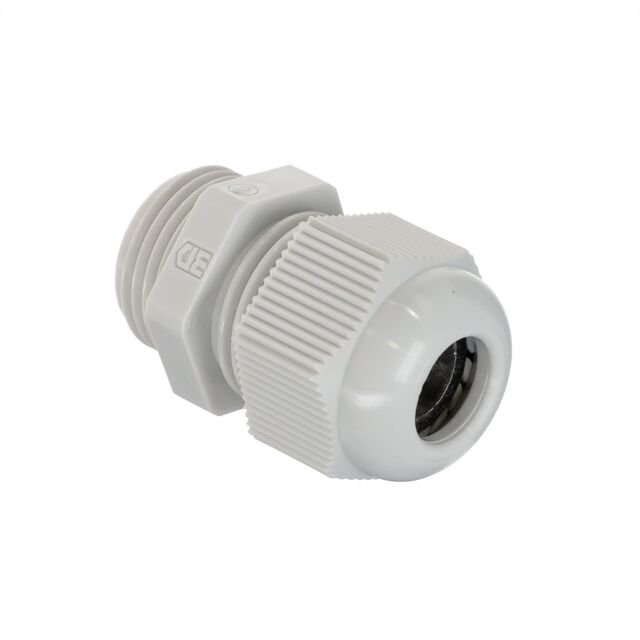

CABLE GLAND 5-10MM PG11 POLYAMID

Search across all available documentation for this part.

Active

Jacob GmbH

CABLE GLAND 5-10MM PG11 POLYAMID

Technical Specifications

Parameters and characteristics for this part

Specification	50.011 PA7035

Color	Gray
Includes	Sealing Ring
Ingress Protection	IP68 - Dust Tight, Waterproof
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.394 "
Outside Cable Diameter (Max) [Max] [diameter]	10 mm
Outside Cable Diameter (Min) [Min]	5 mm
Outside Cable Diameter (Min) [Min]	0.197 in
Thread Length	8 mm
Thread Length	0.315 in
Thread Size	PG11
Type	Cable Gland

Part	Includes	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Thread Size	Thread Length	Thread Length	Ingress Protection	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Color	Type	Operating Temperature [Max]	Operating Temperature [Min]
Jacob GmbH 50.011 PA/SW	Sealing Ring	5 mm	0.197 in	PG11	8 mm	0.315 in	IP68 - Dust Tight Waterproof	0.394 "	10 mm	Black	Cable Gland	100 °C	-40 °C
Jacob GmbH 50.011 PA7035	Sealing Ring	5 mm	0.197 in	PG11	8 mm	0.315 in	IP68 - Dust Tight Waterproof	0.394 "	10 mm	Gray	Cable Gland	100 °C	-40 °C
Jacob GmbH 50.011PA/SW/G	Sealing Ring	5 mm	0.197 in	PG11	8 mm	0.315 in	IP68 - Dust Tight Waterproof	0.394 "	10 mm		Cable Gland	100 °C	-40 °C
Jacob GmbH 50.011 PASW15	Sealing Ring	5 mm	0.197 in	PG11	15 mm	0.591 in	IP68 - Dust Tight Waterproof	0.394 "	10 mm	Black	Cable Gland	100 °C	-40 °C
Jacob GmbH 50.011 PABSSW	Strain Relief	5 mm	0.197 in	PG11	8 mm	0.315 in	IP68 - Dust Tight Waterproof	0.394 "	10 mm	Black	Cable Gland	100 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Polyamide (PA6), Nylon 6 PG11 Gray
