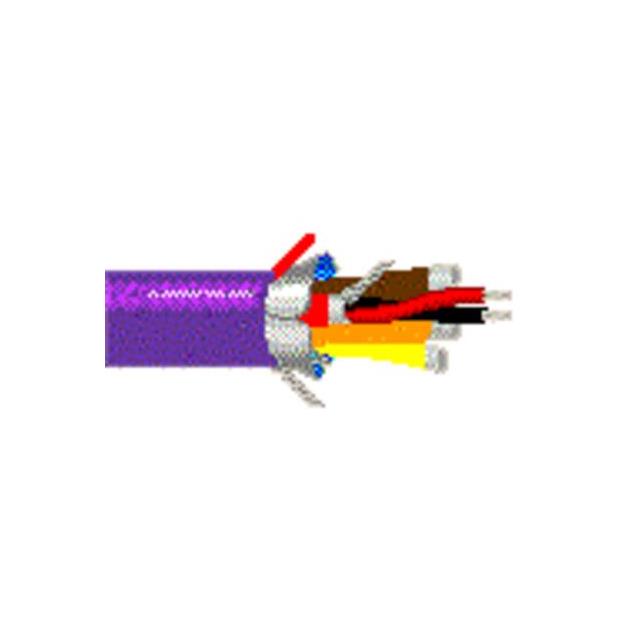

7892A Z4B1000

Active

Belden Inc.

12 #26 FHDPE FS PRPVC FS

Search across all available documentation for this part.

Active

Belden Inc.

12 #26 FHDPE FS PRPVC FS

Technical Specifications

Parameters and characteristics for this part

Specification	7892A Z4B1000

Cable Type	Multi-Pair
Conductor Insulation	Foam Polyethylene (FPE)
Conductor Material	Copper, Tinned
Conductor Strand	7 Strands, 34 AWG
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	0.679 "
Jacket (Insulation) Diameter [diameter]	17.24 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.056 in
Jacket (Insulation) Thickness	1.422 mm
Jacket Color	Violet
Length	1000 ft
Length	304.8 m
Number of Conductors	24
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Shield Coverage	100 %
Shield Material	Polyester, Aluminum
Shield Type	Foil
Usage	Audio
Wire Gauge	26 AWG

Part	Cable Type	Shield Type	Usage	Jacket Color	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Features	Conductor Material	Shield Material	Jacket (Insulation) Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length	Shield Coverage	Number of Conductors	Conductor Strand	Conductor Insulation
Belden Inc. 7892A Z4B1000	Multi-Pair	Foil	Audio	Violet	26 AWG	0.679 "	17.24 mm	Drain Wire Rip Cord	Copper Tinned	Aluminum Polyester	Poly-Vinyl Chloride (PVC)	0.056 in	1.422 mm	-30 ░C	80 C	1000 ft	304.8 m	100 %	24	7 Strands 34 AWG	Foam Polyethylene (FPE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

24 (12 Pair) Conductor Multi-Pair Cable Violet 26 AWG Foil 1000.0' (304.8m)
