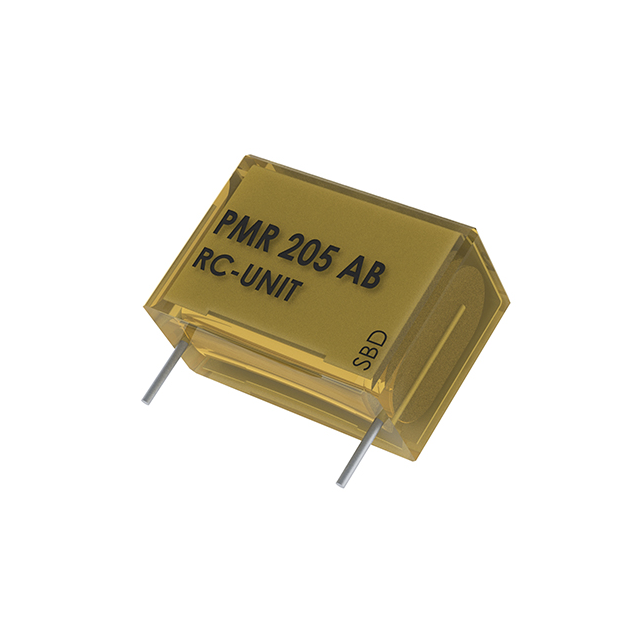

PMR205AB6100M100R30
ObsoleteKEMET
PAPER DIELECTRIC CAPACITORS ROHS
Deep-Dive with AI
Search across all available documentation for this part.
PMR205AB6100M100R30
ObsoleteKEMET
PAPER DIELECTRIC CAPACITORS ROHS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PMR205AB6100M100R30 |
|---|---|
| Applications | EMI, RFI Suppression |
| Capacitance | 100000 pF |
| Dielectric Material | Paper, Metallized |
| Height - Seated (Max) [Max] | 0.413 in |
| Height - Seated (Max) [Max] | 10.5 mm |
| Lead Spacing | 0.598 in |
| Lead Spacing | 15.2 mm |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Radial |
| Size / Dimension [x] | 18.5 mm |
| Size / Dimension [x] | 0.728 in |
| Size / Dimension [y] | 5.2 mm |
| Size / Dimension [y] | 0.205 " |
| Termination | PC Pins |
| Tolerance | 20 % |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| LCSC | Piece | 1 | $ 1.85 | |
| 200 | $ 0.72 | |||
| 500 | $ 0.69 | |||
| 1000 | $ 0.68 | |||
Description
General part information
PMR205 Series
0.1 µF Film Capacitor 125V 250V Paper, Metallized Radial
