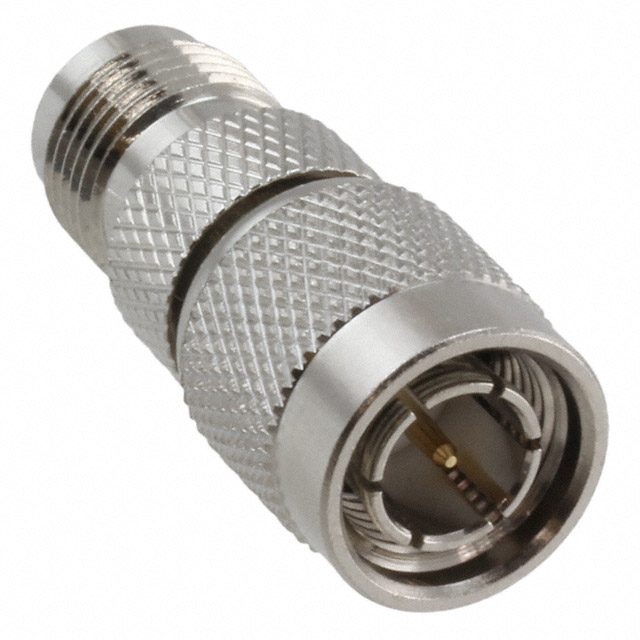

122498-75

Active

Amphenol RF

CONN ADAPT JACK TO PLUG TNC

Search across all available documentation for this part.

Active

Amphenol RF

CONN ADAPT JACK TO PLUG TNC

Technical Specifications

Parameters and characteristics for this part

Specification	122498-75

Adapter Series	TNC to TNC
Adapter Type	Plug to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Conversion Type	Same Series
Convert From (Adapter End)	TNC Jack, Female Socket
Convert To (Adapter End)	TNC Plug, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	1 GHz
Impedance	75 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Adapter Series	Convert To (Adapter End)	Center Contact Material	Style	Conversion Type	Frequency - Max [Max]	Adapter Type	Impedance	Center Contact Plating	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Convert From (Adapter End)	Dielectric Material	Body Finish	Body Material
Amphenol RF 122498-75	TNC to TNC	Male Pin TNC Plug	Phosphor Bronze	Straight	Same Series	1 GHz	Plug to Jack	75 Ohms	Gold	Free Hanging (In-Line)	-65 ░C	165 °C	TNC Jack Female Socket	Polytetrafluoroethylene (PTFE)	Nickel	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Adapter Coaxial Connector TNC Jack, Female Socket To TNC Plug, Male Pin 75 Ohms

Technical documentation and resources

No documents available
