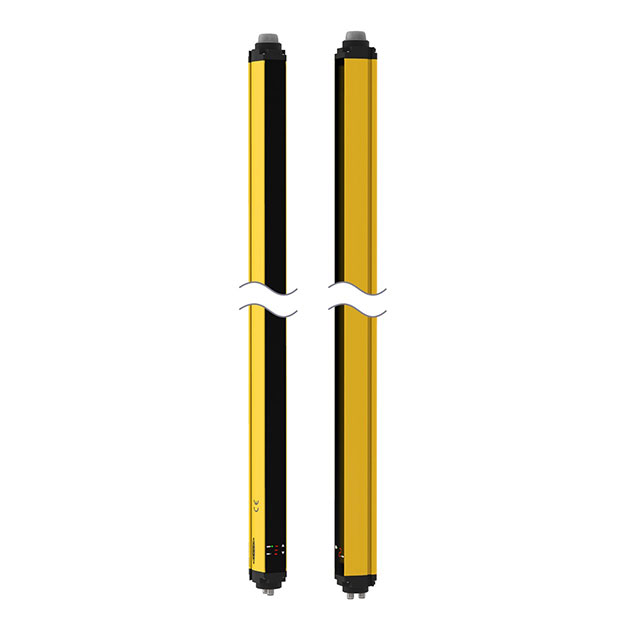

SGSMP2-500Q128

Active

BANNER ENGINEERING

SGS SAFETY GRID SYSTEM, EMITTER/RECEIVER PAIR

Search across all available documentation for this part.

Active

BANNER ENGINEERING

SGS SAFETY GRID SYSTEM, EMITTER/RECEIVER PAIR

Technical Specifications

Parameters and characteristics for this part

Specification	SGSMP2-500Q128

Beam Pitch	500 mm
Features	Muting Function
Ingress Protection	IP65 - Dust Tight, Water Resistant
Number of Beams	2
Operating Range [Max]	30 m
Operating Range [Min]	0.5 m
Protective Height [z]	500 mm
Voltage - Supply	24 VDC

Part	Number of Beams	Beam Pitch	Ingress Protection	Protective Height [z]	Operating Range [Min]	Operating Range [Max]	Voltage - Supply	Features
BANNER ENGINEERING SGSMP2-500Q128	2	500 mm	IP65 - Dust Tight Water Resistant	500 mm	0.5 m	30 m	24 VDC	Muting Function

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1379.01
Newark	Each	1	$ 1403.00

General part information

Light Curtain Muting Function

Technical documentation and resources
