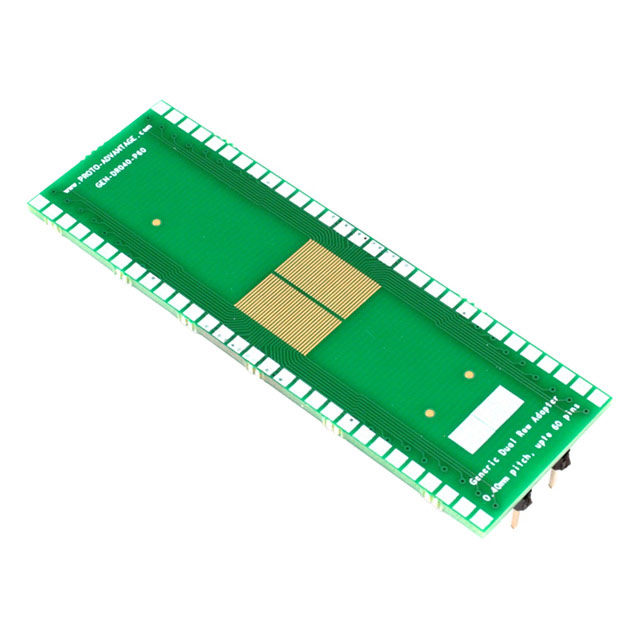

GEN-DR040-P60

Active

Chip Quik Inc.

GENERIC DUAL ROW 0.40MM PITCH 60

Search across all available documentation for this part.

Active

Chip Quik Inc.

GENERIC DUAL ROW 0.40MM PITCH 60

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.99

General part information

GENERIC DUAL ROW 0.40MM PITCH 60

Technical documentation and resources

Specification	GEN-DR040-P60	GEN-D Series

Material	FR4 Epoxy Glass	Stainless Steel, FR4 Epoxy Glass
Number of Positions	60	40 - 60
Package Accepted	0.4mm Connector	0.4mm Connector
Pitch [x]	0.016 in	0.016 - 0.031 in
Pitch [x]	0.4 mm	0.4 - 0.8 mm
Proto Board Type	SMD to DIP	SMD to DIP
Size / Dimension [x]	76.2 mm	50.8 - 76.2 mm
Size / Dimension [x]	3 "	2 - 3 "
Size / Dimension [y]	25.4 mm	25.4 mm
Size / Dimension [y]	25.4 mm	25.4 mm

Part	Pitch [x]	Pitch [x]	Material	Number of Positions	Proto Board Type	Package Accepted	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]
Chip Quik Inc. GEN-DR040-P60-S	0.016 in	0.4 mm	Stainless Steel	60
Chip Quik Inc. GEN-DR040-P60	0.016 in	0.4 mm	FR4 Epoxy Glass	60	SMD to DIP	0.4mm Connector	76.2 mm	25.4 mm	25.4 mm	3 "
Chip Quik Inc. GEN-DR0635-P40	0.025 in	0.64 mm	FR4 Epoxy Glass	40	SMD to DIP		50.8 mm	25.4 mm	25.4 mm	2 in
Chip Quik Inc. GEN-DR0635-P40-S	0.025 in	0.64 mm	Stainless Steel	40
Chip Quik Inc. GEN-DR080-P40-S	0.031 in	0.8 mm	Stainless Steel	40
