Q-0302V0005002M

Active

Amphenol Custom Cable

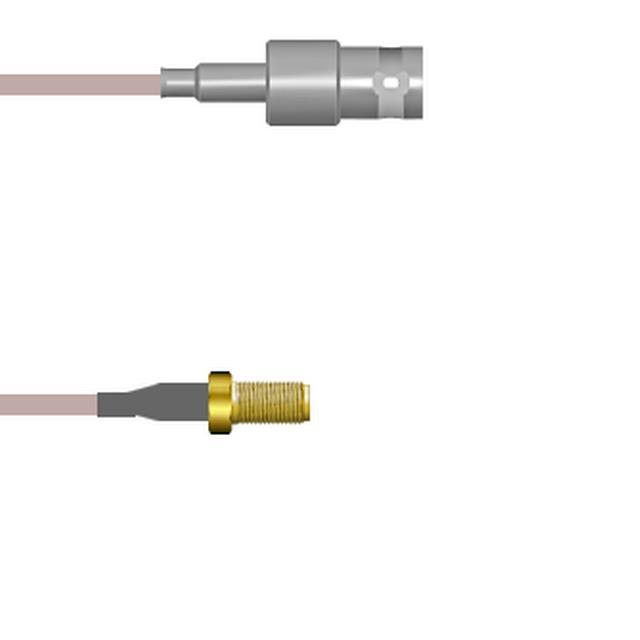

CBL ASSY BNC-SMA JACK-JACK 6.6'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0302V0005002M

Active

Amphenol Custom Cable

CBL ASSY BNC-SMA JACK-JACK 6.6'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0302V0005002M

1st Connector	BNC Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	SMA Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	6.6 ft
Length	78.7 in
Length	2 m
Overall Impedance	50 Ohms
Style	BNC to SMA

Q-0302V0 Series

Part	Color	Cable Type	2nd Connector Mounting Type	1st Connector Mounting Type	Length	Length	Length	2nd Connector	Overall Impedance	1st Contact Gender	Style	Features	Frequency - Max [Max]	1st Connector	2nd Contact Gender
Amphenol Custom Cable Q-0302V00052.5M	Copper	RG-316	Free Hanging (In-Line)	Free Hanging (In-Line)	8.2 '	98.4 in	2.5 m	SMA Jack	50 Ohms	Female	BNC to SMA	Shielded	4 GHz	BNC Jack	Female
Amphenol Custom Cable Q-0302V0005006i	Copper	RG-316	Free Hanging (In-Line)	Free Hanging (In-Line)		6 in	152.4 mm	SMA Jack	50 Ohms	Female	BNC to SMA	Shielded	4 GHz	BNC Jack	Female
Amphenol Custom Cable Q-0302V0005036i	Copper	RG-316	Free Hanging (In-Line)	Free Hanging (In-Line)		36 in	91.44 cm	SMA Jack	50 Ohms	Female	BNC to SMA	Shielded	4 GHz	BNC Jack	Female
Amphenol Custom Cable Q-0302V0005084i	Copper	RG-316	Free Hanging (In-Line)	Free Hanging (In-Line)	7 ft	84 in	2.1 m	SMA Jack	50 Ohms	Female	BNC to SMA	Shielded	4 GHz	BNC Jack	Female
Amphenol Custom Cable Q-0302V00031.5M	Black	RG-174	Free Hanging (In-Line)	Free Hanging (In-Line)	4.9 ft	59.1 in	1.5 m	SMA Jack	50 Ohms	Female	BNC to SMA	Shielded	4 GHz	BNC Jack	Female
Amphenol Custom Cable Q-0302V0005048i	Copper	RG-316	Free Hanging (In-Line)	Free Hanging (In-Line)	4 ft	48 in	1200 mm	SMA Jack	50 Ohms	Female	BNC to SMA	Shielded	4 GHz	BNC Jack	Female
Amphenol Custom Cable Q-0302V0005009i	Copper	RG-316	Free Hanging (In-Line)	Free Hanging (In-Line)		9 "	228.6 mm	SMA Jack	50 Ohms	Female	BNC to SMA	Shielded	4 GHz	BNC Jack	Female
Amphenol Custom Cable Q-0302V0005002M	Copper	RG-316	Free Hanging (In-Line)	Free Hanging (In-Line)	6.6 ft	78.7 in	2 m	SMA Jack	50 Ohms	Female	BNC to SMA	Shielded	4 GHz	BNC Jack	Female
Amphenol Custom Cable Q-0302V0003048i	Black	RG-174	Free Hanging (In-Line)	Free Hanging (In-Line)	4 ft	48 in	1200 mm	SMA Jack	50 Ohms	Female	BNC to SMA	Shielded	4 GHz	BNC Jack	Female
Amphenol Custom Cable Q-0302V0003060i	Black	RG-174	Free Hanging (In-Line)	Free Hanging (In-Line)	5 ft	5 '	1.5 m	SMA Jack	50 Ohms	Female	BNC to SMA	Shielded	4 GHz	BNC Jack	Female

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 83.76
		25	$ 77.98
		50	$ 72.19
		100	$ 67.23
		250	$ 63.10

Description

General part information

Q-0302V0 Series

Cable Assembly Coaxial BNC to SMA RG-316 78.7" (2.0m) 6.6'

Documents

Technical documentation and resources

No documents available
