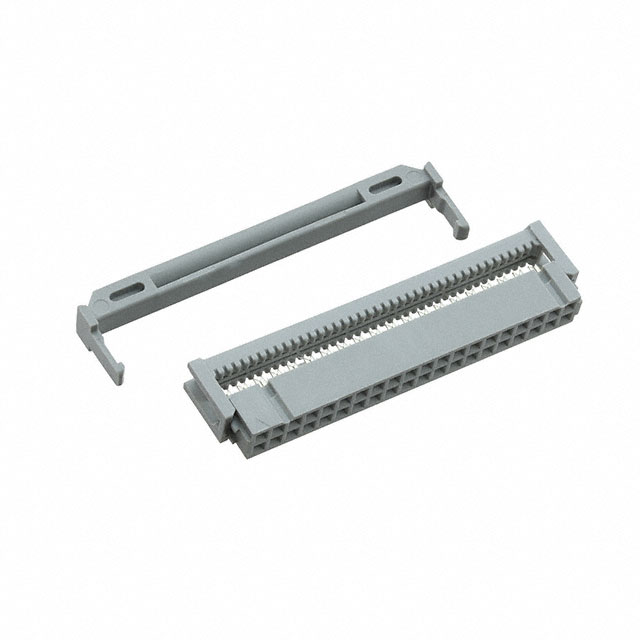

89140-0003

Active

3M (TC)

2.54MM GOLD 2.54MM 2 P=2.54MM IDC CONNECTORS ROHS

Search across all available documentation for this part.

Active

3M (TC)

2.54MM GOLD 2.54MM 2 P=2.54MM IDC CONNECTORS ROHS

Technical Specifications

Parameters and characteristics for this part

Part	Number of Positions	Cable Termination	Wire Type	Contact Type	Contact Finish	Number of Rows	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Color	Features	Connector Type	Row Spacing [x]	Row Spacing
3M (TC) 89140-0111	40	IDC	Ribbon Cable	Female Socket	Gold	2	Free Hanging (In-Line)	0.76 Ám	30 Áin	2.54 mm	0.1 in	Gray	Feed Through Polarizing Key	Receptacle	0.1 in	2.54 mm
3M (TC) 89140-0011	40	IDC	Ribbon Cable	Female Socket	Gold	2	Free Hanging (In-Line)	0.76 Ám	30 Áin	2.54 mm	0.1 in	Gray	Feed Through	Receptacle	0.1 in	2.54 mm
3M (TC) 89140-0003	40	IDC	Ribbon Cable	Female Socket	Gold	2	Free Hanging (In-Line)	0.76 Ám	30 Áin	2.54 mm	0.1 in	Gray	Feed Through Strain Relief	Receptacle	0.1 in	2.54 mm
3M (TC) 89140-0101HA	40	IDC	Ribbon Cable	Female Socket	Gold	2	Free Hanging (In-Line)	0.38 µm	15 µin	2.54 mm	0.1 in	Gray	Feed Through Polarizing Key	Receptacle	0.1 in	2.54 mm
