H8MMH-2006G

Active

Assmann WSW Components

DIP CABLE - HDM20H/AE20G/HDM20H

Search across all available documentation for this part.

Active

Assmann WSW Components

DIP CABLE - HDM20H/AE20G/HDM20H

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

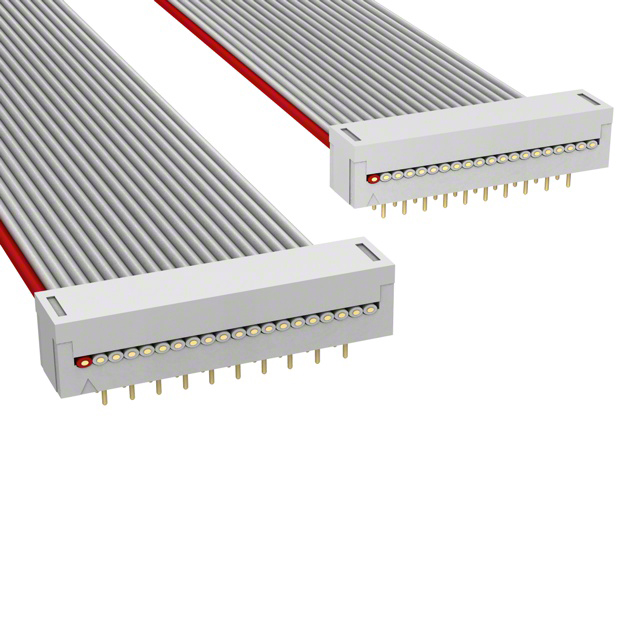

20 Position Cable Assembly Rectangular DIP to DIP, Reversed 0.500' (152.40mm, 6.00")

Technical documentation and resources

Parameters and characteristics commom to parts in this series

DIP CABLE - HDM20H/AE20G/HDM20H

Part	Contact Finish	Number of Positions	Shielding	Number of Rows	Connector Type	Length	Length	Length	Pitch - Cable	Pitch - Cable	Cable Termination	Usage	Contact Finish Thickness	Contact Finish Thickness	Pitch - Connector	Pitch - Connector	Color	Length [x]	Length [x]
Assmann WSW Components H8MMH-2006G	Gold	20	Unshielded	2	DIP to DIP, Reversed	152.4 mm	6 "	0.5 '	0.05 "	1.27 mm	IDC	Board In, Socket (0.1")	0.76 Ám	30 Áin	0.1 in	2.54 mm
Assmann WSW Components H8MMH-2018M	Gold	20	Unshielded	2	DIP to DIP, Reversed				0.05 "	1.27 mm	IDC	Board In, Socket (0.1")	0.76 Ám	30 Áin	0.1 in	2.54 mm	Multiple, Ribbon	457.2 mm	1.5 ft
Assmann WSW Components H8MMH-2006M	Gold	20	Unshielded	2	DIP to DIP, Reversed	152.4 mm	6 "	0.5 '	0.05 "	1.27 mm	IDC	Board In, Socket (0.1")	0.76 Ám	30 Áin	0.1 in	2.54 mm	Multiple, Ribbon
Assmann WSW Components H8MMH-2036G	Gold	20	Unshielded	2	DIP to DIP, Reversed				0.05 "	1.27 mm	IDC	Board In, Socket (0.1")	0.76 Ám	30 Áin	0.1 in	2.54 mm		914.4 mm	3 ft
Assmann WSW Components H8MMH-2018G	Gold	20	Unshielded	2	DIP to DIP, Reversed				0.05 "	1.27 mm	IDC	Board In, Socket (0.1")	0.76 Ám	30 Áin	0.1 in	2.54 mm		457.2 mm	1.5 ft
