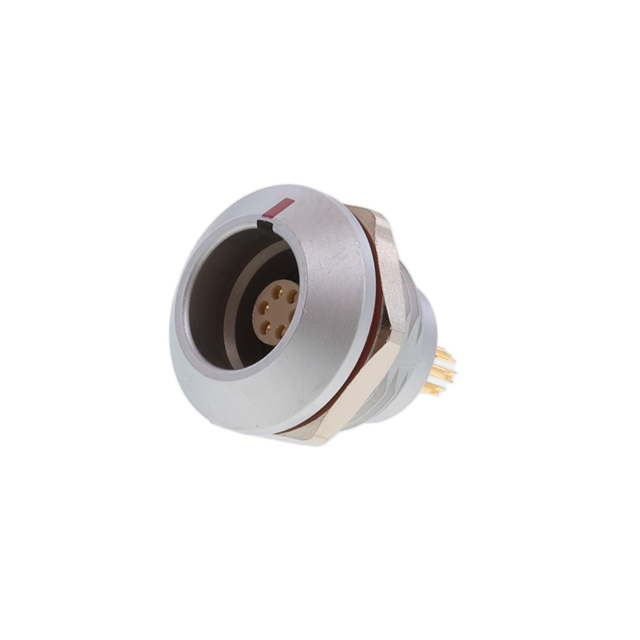

FLKB-06EGFS-GCP-001
ActiveAmphenol LTW
CIRCULAR CONNECTOR, FLO K SERIES, PANEL MOUNT RECEPTACLE, 6 CONTACTS, SOLDER SOCKET, PUSH-PULL
Deep-Dive with AI
Search across all available documentation for this part.
FLKB-06EGFS-GCP-001
ActiveAmphenol LTW
CIRCULAR CONNECTOR, FLO K SERIES, PANEL MOUNT RECEPTACLE, 6 CONTACTS, SOLDER SOCKET, PUSH-PULL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FLKB-06EGFS-GCP-001 |
|---|---|
| Applications | Testing Equipment & Measurement, Medical, Industrial, Telecommunications, Instrumentation |
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 2.5 A |
| Fastening Type | Push-Pull |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Insert Material | Polyphenylene Sulfide (PPS) |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Number of Positions | 6 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | G |
| Primary Material | Metal |
| Shell Finish | Chrome |
| Shell Material | Copper Alloy |
| Shell Size - Insert | B-6 |
| Shielding | Shielded |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
FLKB-06EGFS Series
The FLO series offers fast and easy mating for a accurate and reliable connection for signal, data, and power transmission. Intended for both indoor and outdoor environments.
