MDD255-12N1

Active

IXYS

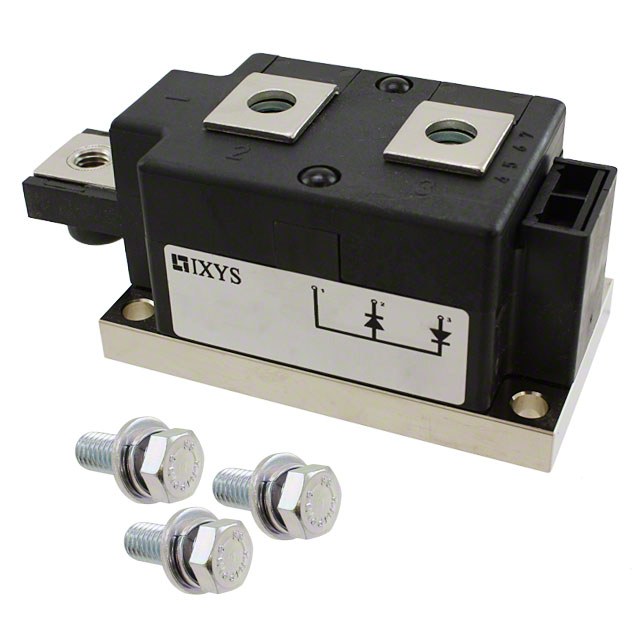

DIODE MODULE GP 1200V 270A Y1-CU

Search across all available documentation for this part.

Active

IXYS

DIODE MODULE GP 1200V 270A Y1-CU

Technical Specifications

Parameters and characteristics for this part

Specification	MDD255-12N1

Current - Average Rectified (Io) (per Diode)	270 A
Current - Reverse Leakage @ Vr	30 mA
Diode Configuration	1 Pair Series Connection
Mounting Type	Chassis Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-40 °C
Package / Case	Y1-CU
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	Y1-CU
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	1.2 kV
Voltage - Forward (Vf) (Max) @ If	1.4 V

Part	Speed	Speed	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Technology	Voltage - DC Reverse (Vr) (Max) [Max]	Mounting Type	Current - Reverse Leakage @ Vr	Supplier Device Package	Current - Average Rectified (Io) (per Diode)	Diode Configuration	Voltage - Forward (Vf) (Max) @ If	Package / Case
IXYS MDD255-18N1	Standard Recovery >500ns	200 mA	150 °C	-40 °C	Standard	1800 V	Chassis Mount	30 mA	Y1-CU	270 A	1 Pair Series Connection	1.4 V	Y1-CU
IXYS MDD255-12N1	Standard Recovery >500ns	200 mA	150 °C	-40 °C	Standard	1.2 kV	Chassis Mount	30 mA	Y1-CU	270 A	1 Pair Series Connection	1.4 V	Y1-CU
IXYS MDD255-22N1	Standard Recovery >500ns	200 mA	150 °C	-40 °C	Standard	2200 V	Chassis Mount	30 mA	Y1-CU	270 A	1 Pair Series Connection	1.4 V	Y1-CU
IXYS MDD255-14N1	Standard Recovery >500ns	200 mA	150 °C	-40 °C	Standard	1400 V	Chassis Mount	30 mA	Y1-CU	270 A	1 Pair Series Connection	1.4 V	Y1-CU

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode Array 1 Pair Series Connection 1200 V 270A Chassis Mount Y1-CU
