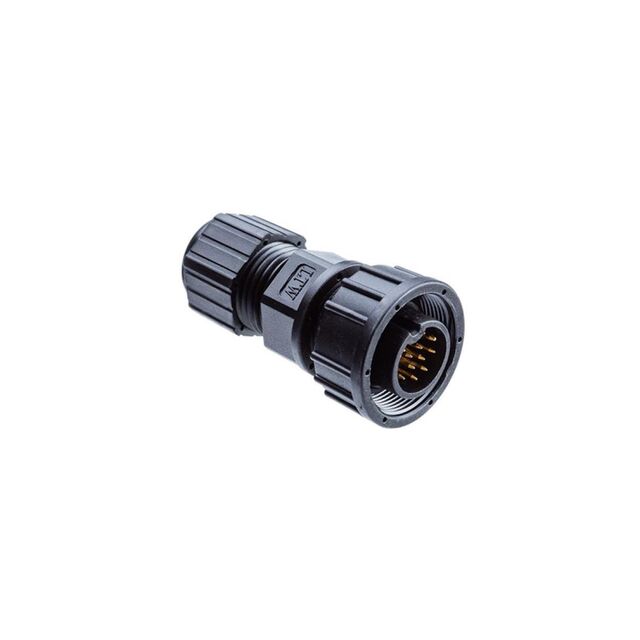

CD-09BFMA-SL7001

Active

Amphenol LTW

CERES, MIDDLE SIZE, PLASTIC, 5A, 09 PINS, FEMALE CONNECTOR, MALE CONTACT, STRAIGHT, SCREW THREAD, SOLDER, FIELD INSTALLABLE, 4.0

Search across all available documentation for this part.

Active

Amphenol LTW

CERES, MIDDLE SIZE, PLASTIC, 5A, 09 PINS, FEMALE CONNECTOR, MALE CONTACT, STRAIGHT, SCREW THREAD, SOLDER, FIELD INSTALLABLE, 4.0

Technical Specifications

Parameters and characteristics for this part

Specification	CD-09BFMA-SL7001

Backshell Material, Plating	Polyamide (PA), Nylon
Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Features	Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	9
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	C
Shielding	Unshielded

Part	Connector Type	Primary Material	Features	Contact Finish - Mating	Ingress Protection	Fastening Type	Backshell Material, Plating	Contact Material	Shell Material	Orientation	Color	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Mounting Type	Number of Positions	Shell Size - Insert	Insert Material	Current Rating (Amps)	Termination	Voltage Rating	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Material Flammability Rating
Amphenol LTW CD-09BFMA-LL7001	Male Pins Plug	Plastic	Backshell Coupling Nut	Gold	IP67 - Dust Tight Waterproof	Bayonet Lock	Nylon Polyamide (PA)	Copper Alloy	Glass Filled Nylon Polyamide (PA)	Keyed	Black	-40 °C	105 ░C	Unshielded	Free Hanging (In-Line)	9	C	Polyamide (PA) Nylon Glass Filled	5 A
Amphenol LTW CD-09BFMA-SL7001	Male Pins Plug	Plastic	Backshell Coupling Nut	Gold	IP67 - Dust Tight Waterproof		Nylon Polyamide (PA)	Copper Alloy	Glass Filled Nylon Polyamide (PA)	Keyed	Black			Unshielded	Free Hanging (In-Line)	9	C	Polyamide (PA) Nylon Glass Filled
Amphenol LTW CD-09BFMA-QL8MP0	Male Pins Plug	Plastic	Backshell	Gold	IP68 - Dust Tight Waterproof	Push-Pull		Copper Alloy	Glass Filled Nylon Polyamide (PA)	Keyed	Black	-40 °C	105 ░C	Unshielded	Free Hanging (In-Line)	9	C	Polyamide (PA) Nylon Glass Filled	5 A	Crimp	300 VAC	0.394 in	8 mm	10 mm	0.315 in	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Position Circular Connector Plug, Male Pins Solder Cup
