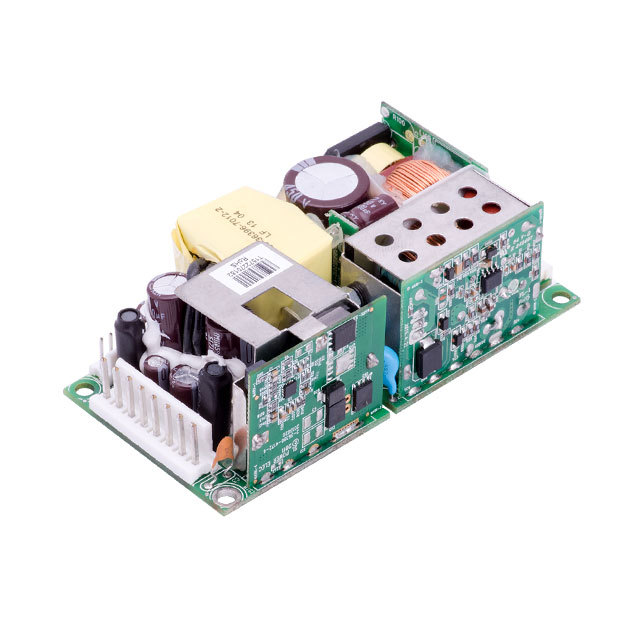

CINT3110A1908K01

Obsolete

SL POWER / Advanced Energy

AC/DC POWER SUPPLY TRIPLE-OUT 5V/24V/-24V 8A/3A/1A 110W 15-PIN

Search across all available documentation for this part.

Obsolete

SL POWER / Advanced Energy

AC/DC POWER SUPPLY TRIPLE-OUT 5V/24V/-24V 8A/3A/1A 110W 15-PIN

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 104.95

General part information

Open Frame AC DC Converters 3 Output 5V 24V -24V 90 ~ 264 VAC Input

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	CINT3110A1908K01	CINT3110 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CE	CE
Current - Output 1	12 A	12 - 14 A
Current - Output 2	4 A	4 - 4.5 A
Current - Output 2	-	6 A
Efficiency	87 %	87 %
Features	Remote Sense, Universal Input, Adjustable Output, DC Input Capable	Remote Sense, Universal Input, Adjustable Output, DC Input Capable
Minimum Load Required	False	False
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	3	3
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-10 °C	-10 °C
Power (Watts)	80 W, 110 W	80 - 110 W
Size / Dimension [x]	101.6 mm	101.6 mm
Size / Dimension [x]	4 in	4 in
Size / Dimension [y]	2 in	2 in
Size / Dimension [y]	50.8 mm	50.8 mm
Size / Dimension [z]	1.3 "	1.3 "
Size / Dimension [z]	33 mm	33 mm
Type	Open Frame	Open Frame
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Isolation	4000 V	4000 V
Voltage - Output 1	5 V	5 V
Voltage - Output 2	24 V	12 - 24 V
Voltage - Output 3	-24 V	-24 - -12 V

AC/DC CONVERTER 5V +/-12V 80W

Part	Efficiency	Voltage - Output 1	Applications	Features	Current - Output 2 [custom]	Voltage - Output 2	Current - Output 1	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Input [Min]	Voltage - Input [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 3	Type	Approval Agency	Mounting Type	Voltage - Isolation	Number of Outputs	Power (Watts)	Current - Output 2
SL POWER / Advanced Energy CINT3110A0508K01	87 %	5 V	ITE (Commercial)	Adjustable Output, DC Input Capable, Remote Sense, Universal Input	6 A	12 V	14 A	101.6 mm	1.3 "	2 in	4 in	50.8 mm	33 mm	90 VAC	264 VAC	-10 °C	70 °C	-12 V	Open Frame	CE	Chassis Mount	4000 V	3	80 W, 110 W
SL POWER / Advanced Energy CINT3110A1708K01	87 %	5 V	ITE (Commercial)	Adjustable Output, DC Input Capable, Remote Sense, Universal Input		15 V	14 A	101.6 mm	1.3 "	2 in	4 in	50.8 mm	33 mm	90 VAC	264 VAC	-10 °C	70 °C	-15 V	Open Frame	CE	Chassis Mount	4000 V	3	80 W, 110 W	4.5 A
SL POWER / Advanced Energy CINT3110A1908K01	87 %	5 V	ITE (Commercial)	Adjustable Output, DC Input Capable, Remote Sense, Universal Input		24 V	12 A	101.6 mm	1.3 "	2 in	4 in	50.8 mm	33 mm	90 VAC	264 VAC	-10 °C	70 °C	-24 V	Open Frame	CE	Chassis Mount	4000 V	3	80 W, 110 W	4 A
