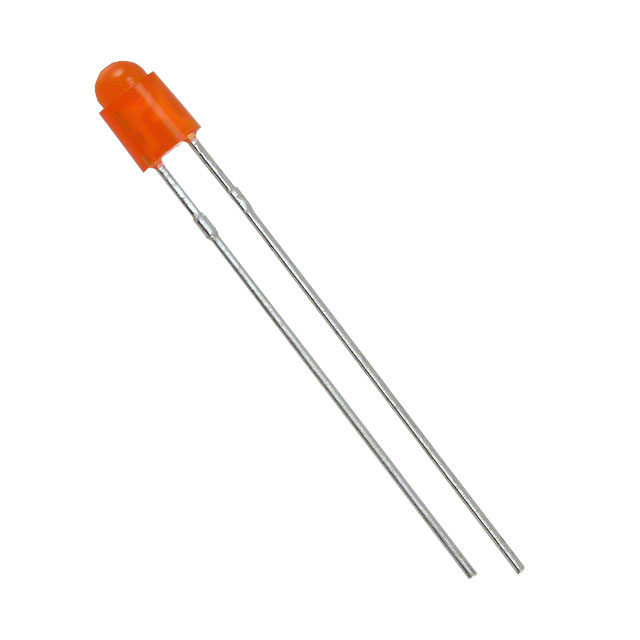

WP908A8ND

Active

Kingbright

LED ORANGE DIFFUSED T-1 T/H

Search across all available documentation for this part.

Active

Kingbright

LED ORANGE DIFFUSED T-1 T/H

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Orange 602nm LED Indication - Discrete 2.05V Radial

Technical documentation and resources

Parameters and characteristics commom to parts in this series

LED ORANGE DIFFUSED T-1 T/H

Part	Package / Case	Configuration	Lens Size	Lens Size	Size / Dimension [diameter]	Current - Test	Viewing Angle	Millicandela Rating	Height (Max) [Max]	Mounting Type	Wavelength - Dominant	Supplier Device Package	Lens Transparency	Voltage - Forward (Vf) (Typ)	Lens Style	Wavelength - Peak	Lens Color	Color
Kingbright WP908A8ND	Radial	Standard	3 mm	T-1	2.9 mm	20 mA	80 °	10 mcd	5.5 mm	Through Hole	602 nm	T-1	Diffused	2.05 V	Round with Domed Top	607 nm	Orange
Kingbright WP908A8YD	Radial	Standard	3 mm	T-1	2.9 mm	20 mA	80 °	20 mcd	5.5 mm	Through Hole	588 nm	T-1	Diffused	2.1 V	Round with Domed Top	590 nm	Yellow	Yellow
Kingbright WP908A8GD	Radial	Standard	3 mm	T-1	2.9 mm	20 mA	80 °	25 mcd	5.5 mm	Through Hole	568 nm	T-1	Diffused	2.2 V	Round with Domed Top	565 nm	Green	Green
Kingbright WP908A8ID	Radial	Standard	3 mm	T-1	2.9 mm	20 mA	80 °	20 mcd	5.5 mm	Through Hole	625 nm	T-1	Diffused	2 V	Round with Domed Top	627 nm	Red	Red
Kingbright WP908A8SRD	Radial	Standard	3 mm	T-1	2.9 mm	20 mA	80 °	60 mcd	5.5 mm	Through Hole	640 nm	T-1	Diffused	1.85 V	Round with Domed Top	660 nm	Red	Red
