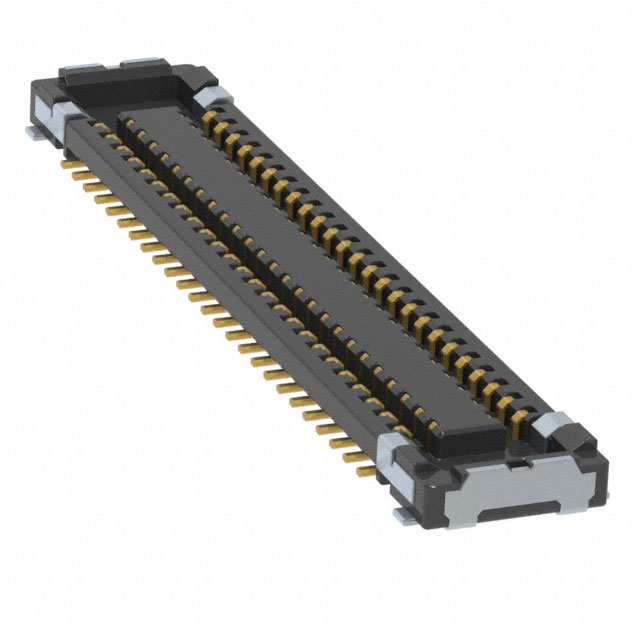

AXG750047A

Panasonic Electric Works

CONN SOCKET 50POS SMD GOLD

Search across all available documentation for this part.

Panasonic Electric Works

CONN SOCKET 50POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXG750047A

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board	0.023 in
Height Above Board	0.59 mm
Mated Stacking Heights	0.6 mm
Mounting Type	Surface Mount
Number of Positions	50
Number of Rows	2
Pitch [x]	0.35 mm
Pitch [x]	0.014 in

Part	Features	Number of Rows	Mated Stacking Heights	Height Above Board	Height Above Board	Connector Type	Pitch [x]	Pitch [x]	Mounting Type	Contact Finish	Number of Positions
Panasonic Electric Works AXG750047A	Solder Retention	2	0.6 mm	0.023 in	0.59 mm	Socket Center Strip Contacts	0.35 mm	0.014 in	Surface Mount	Gold	50

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Strip	500	$ 2.44

General part information

50 Position Connector Socket, Center Strip Contacts Surface Mount Gold
