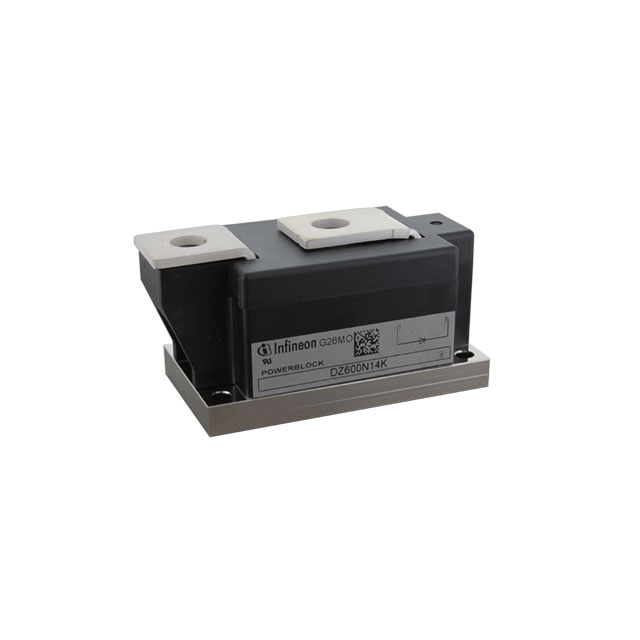

DZ600N14KHPSA1

Obsolete

Infineon Technologies

DIODE STANDARD 1400V 735A MODULE

Search across all available documentation for this part.

Obsolete

Infineon Technologies

DIODE STANDARD 1400V 735A MODULE

Technical Specifications

Parameters and characteristics for this part

Specification	DZ600N14KHPSA1

Current - Average Rectified (Io)	735 A
Current - Reverse Leakage @ Vr	40 mA
Mounting Type	Chassis Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-40 °C
Package / Case	Module
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	Module
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	1400 V
Voltage - Forward (Vf) (Max) @ If	1.4 V

Part	Current - Reverse Leakage @ Vr	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Speed	Speed	Mounting Type	Supplier Device Package	Current - Average Rectified (Io)	Voltage - DC Reverse (Vr) (Max) [Max]	Voltage - Forward (Vf) (Max) @ If	Package / Case	Technology
Infineon Technologies DZ600N14KHPSA1	40 mA	150 °C	-40 °C	Standard Recovery >500ns	200 mA	Chassis Mount	Module	735 A	1400 V	1.4 V	Module	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode 1400 V 735A Chassis Mount Module
