K14-507.22200
ActiveEAO

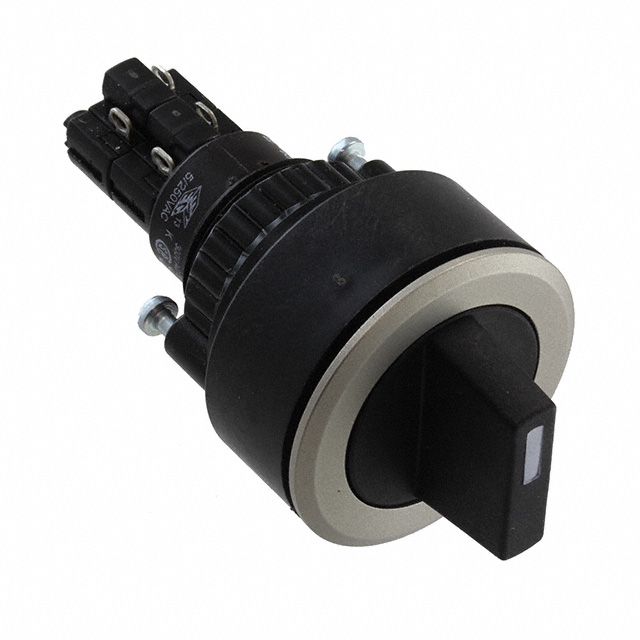

SWITCH ACTUATOR, EAO K14 SERIES SELECTOR SWITCHES, IP67, SERIES 14 SERIES
Deep-Dive with AI
Search across all available documentation for this part.
K14-507.22200
ActiveEAO
SWITCH ACTUATOR, EAO K14 SERIES SELECTOR SWITCHES, IP67, SERIES 14 SERIES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | K14-507.22200 | K14-507 Series |
|---|---|---|
| Approval Agency | - | ENEC, CE, UL, CSA |
| Circuit | - | 4PST-2NO/2NC |
| Current Rating (Amps) | - | 5 A |
| Depth Behind Flange | - | 54 mm |
| Illumination | - | Non-Illuminated |
| Ingress Protection | - | IP67 - Dust Tight, Waterproof |
| Mechanical Life | - | 1000000 Cycles |
| null | - | |
| Number of Positions | - | 2 |
| Operating Temperature | - | 55 °C |
| Operating Temperature | - | -25 °C |
| Panel Cutout Dimensions | - | 30.5 mm |
| Switch Function | - | Off-On |
| Termination Style | - | Solder Lug |
| Type | - | Standard |
| Voltage Rating - AC | - | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
K14-507 Series
SWITCH ACTUATOR, EAO K14 SERIES SELECTOR SWITCHES, IP67, SERIES 14 SERIES
| Part | Circuit | Illumination | Voltage Rating - AC | Number of Positions | Ingress Protection | Termination Style | Approval Agency | Mechanical Life | Current Rating (Amps) | Switch Function | Panel Cutout Dimensions [diameter] | Depth Behind Flange | Operating Temperature [Max] | Operating Temperature [Min] | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
4PST-2NO/2NC | Non-Illuminated | 250 V | 2 | IP67 - Dust Tight, Waterproof | Solder Lug | CE, CSA, ENEC, UL | 1000000 Cycles | 5 A | Off-On | 30.5 mm | 54 mm | 55 °C | -25 °C | Standard | |
Description
General part information
K14-507 Series
Selector Switch 2 Position 4PST-2NO/2NC 5A (AC) 250 V Panel Mount
Documents
Technical documentation and resources
