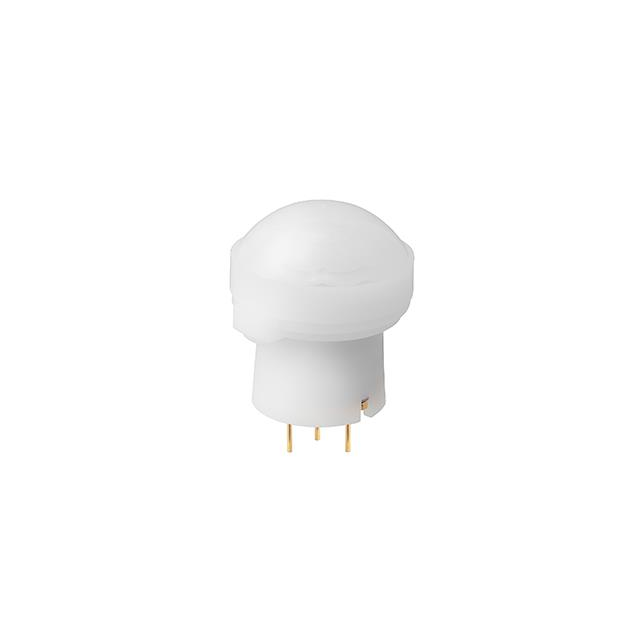

EKMB4393113K

Active

Panasonic Electric Works

SENSOR PIR 6UA DIGITAL PEARL

Search across all available documentation for this part.

Active

Panasonic Electric Works

SENSOR PIR 6UA DIGITAL PEARL

Technical Specifications

Parameters and characteristics for this part

Specification	EKMB4393113K

Features	Pearl White, Saturn Lens
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Package / Case	Module
Sensing Distance	9.8 '
Sensing Distance	118 "
Sensing Distance	3000 mm
Sensor Type	Pyroelectric, PIR (Passive Infrared), Motion
Trigger Type	Internal
Voltage - Supply [Max]	4 V
Voltage - Supply [Min]	2.3 V

Part	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensor Type	Trigger Type	Sensing Distance	Sensing Distance	Sensing Distance	Features
Panasonic Electric Works EKMB4393112K	Module	-20 C	60 °C	4 V	2.3 V	Motion PIR (Passive Infrared) Pyroelectric	Internal	9.8 '	118 "	3000 mm
Panasonic Electric Works EKMB4393113K	Module	-20 C	60 °C	4 V	2.3 V	Motion PIR (Passive Infrared) Pyroelectric	Internal	9.8 '	118 "	3000 mm	Pearl White Saturn Lens
Panasonic Electric Works EKMB4393111K	Module	-20 C	60 °C	4 V	2.3 V	Motion PIR (Passive Infrared) Pyroelectric	Internal	9.8 '	118 "	3000 mm	Saturn Lens White

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Sensor Motion, Pyroelectric, PIR (Passive Infrared) 118" (3m) 9.8' Saturn Lens, Pearl White Module
