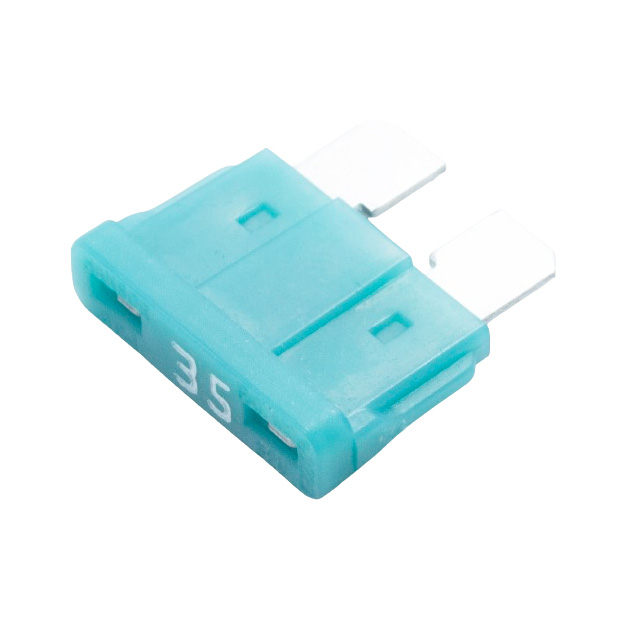

ANR-35A

Active

OptiFuse

FUSE AUTO 35A 32VDC BLADE ATO

Search across all available documentation for this part.

Active

OptiFuse

FUSE AUTO 35A 32VDC BLADE ATO

Technical Specifications

Parameters and characteristics for this part

Specification	ANR-35A

Approval Agency	ISO, SAE
Breaking Capacity @ Rated Voltage	1 kA
Color	Green, Blue
Current Rating (Amps)	35 A
Fuse Type	Automotive
Mounting Type	Requires Holder
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	ATO, Blade, ATC
Response Time	Fast Blow
Size / Dimension [x]	19.3 mm
Size / Dimension [x]	0.76 "
Size / Dimension [y]	0.197 "
Size / Dimension [y]	5 mm
Size / Dimension [z]	0.494 in
Size / Dimension [z]	12.54 mm
Voltage Rating - DC	32 V

FUSE AUTO 35A 32VDC BLADE ATO

Part	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Color	Package / Case	Breaking Capacity @ Rated Voltage	Response Time	Fuse Type	Voltage Rating - DC	Mounting Type	Current Rating (Amps)
OptiFuse ANR-35A	0.494 in	0.197 "	12.54 mm	19.3 mm	0.76 "	5 mm	ISO, SAE	-40 °C	105 ░C	Blue, Green	ATC, ATO, Blade	1 kA	Fast Blow	Automotive	32 V	Requires Holder	35 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

35 A AC 32 V DC Fuse Automotive Requires Holder Blade, ATO/ATC
