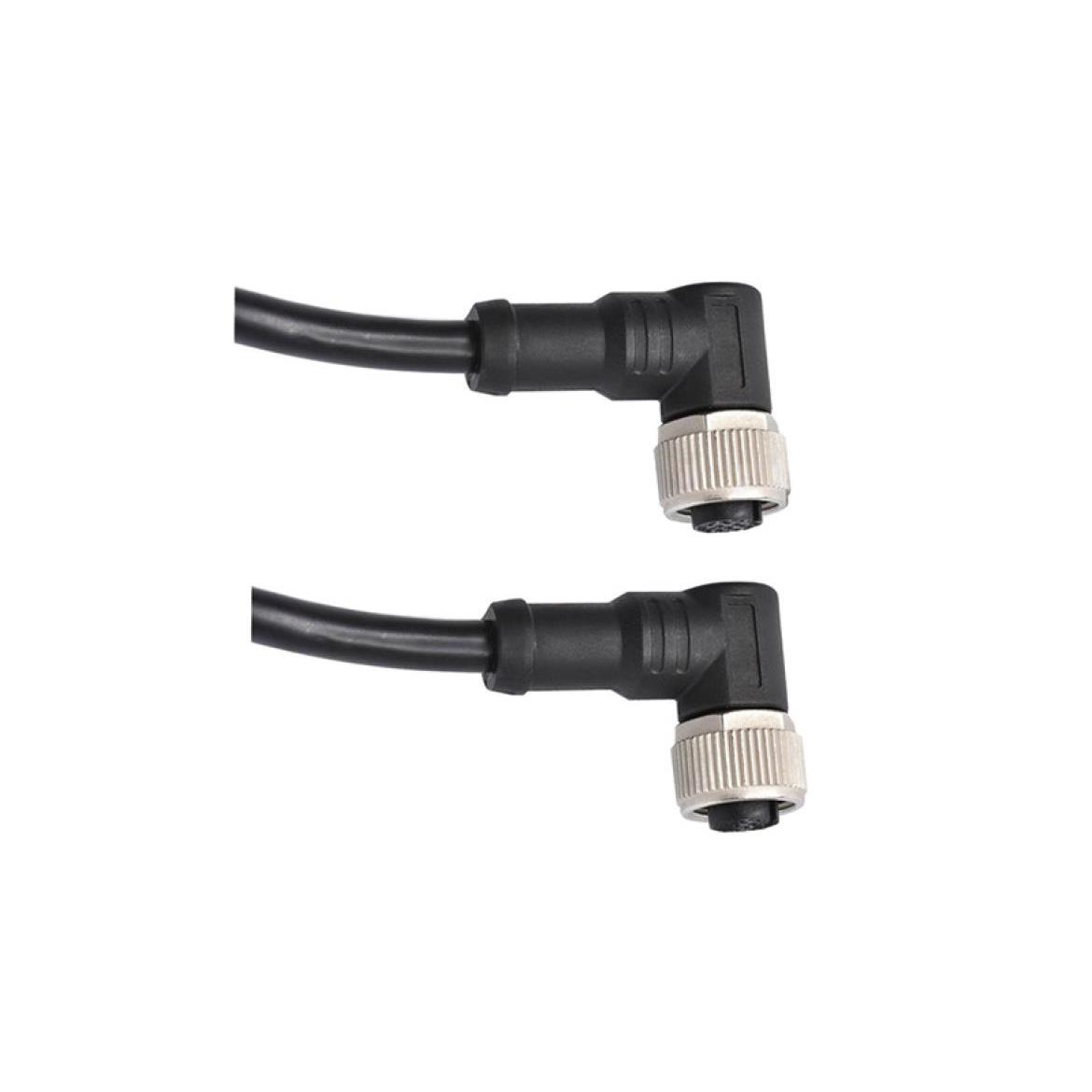

M12A08FR-12AFR-SB001

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, M12, A CODE, METAL, 2A, 08 PINS, FEMALE CONNECTOR, FEMALE CONTACT, RIGHT ANGLE-TO-RIGHT ANGLE, SCREW

Search across all available documentation for this part.

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, M12, A CODE, METAL, 2A, 08 PINS, FEMALE CONNECTOR, FEMALE CONTACT, RIGHT ANGLE-TO-RIGHT ANGLE, SCREW

Technical Specifications

Parameters and characteristics for this part

Specification	M12A08FR-12AFR-SB001

1st Connector Gender	Female Sockets
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	8 positions
1st Connector Number of Positions Loaded	All
1st Connector Orientation	A
1st Connector Shell Size - Insert	M12
1st Connector Type	Plug, Right Angle
2nd Connector Gender	Female Sockets
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Connector Number of Positions	8
2nd Connector Number of Positions Loaded	All
2nd Connector Shell Size - Insert	M12
2nd Connector Type	Plug, Right Angle
Assembly Configuration	Standard
Cable Material	Polyurethane (PUR)
Cable Type	Round
Color	Black
Ingress Protection	IP68, IP69K
Length [x]	1 m
Length [x]	3.28 ft
Shielding	Unshielded
Usage	Industrial Environments

Part	2nd Connector Type	Cable Type	Shielding	2nd Connector Mounting Type	2nd Connector Gender	1st Connector Orientation	Usage	Length [x]	Length [x]	Color	Cable Material	Assembly Configuration	1st Connector Type	1st Connector Number of Positions Loaded	1st Connector Shell Size - Insert	2nd Connector Shell Size - Insert	2nd Connector Number of Positions	1st Connector Number of Positions	1st Connector Gender	1st Connector Mounting Type	2nd Connector Number of Positions Loaded	Ingress Protection
Amphenol LTW M12A08FR-12AFR-SB001	Plug Right Angle	Round	Unshielded	Free Hanging (In-Line)	Female Sockets	A	Industrial Environments	1 m	3.28 ft	Black	Polyurethane (PUR)	Standard	Plug Right Angle	All	M12	M12	8	8 positions	Female Sockets	Free Hanging (In-Line)	All	IP68 IP69K
Amphenol LTW M12A08FR-12AFR-SDA05	Plug Right Angle	Round	Unshielded	Free Hanging (In-Line)	Female Sockets	A	Industrial Environments	500 mm	1.64 ft	Black	Polyvinyl Chloride (PVC)	Standard	Plug Right Angle	All	M12	M12	8	8 positions	Female Sockets	Free Hanging (In-Line)	All	IP68 IP69K

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly 3.28' (1.00m)
