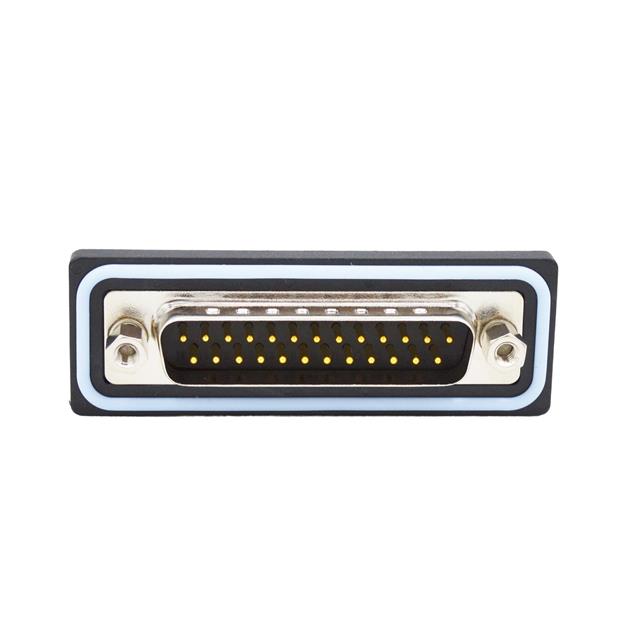

D SUB CONNECTOR, IP67, STANDARD, PLUG, NANOOK SERIES, 25 CONTACTS, DB, SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
SDF-R25-113L012
ActiveNorComp Inc.
D SUB CONNECTOR, IP67, STANDARD, PLUG, NANOOK SERIES, 25 CONTACTS, DB, SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | SDF-R25-113L012 | SDF-R25 Series |
|---|---|---|
| Color | Black | Black |
| Connector Style | D-Sub | D-Sub |
| Connector Type | Plug, Male Pins | Plug, Male Pins, Receptacle, Female Sockets |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Contact Finish Thickness | - | Flash |
| Contact Material | Brass | Brass |
| Contact Type | Signal | Signal |
| Current Rating (Amps) | 5 A | 5 A |
| Dielectric Material | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) |
| Features | Grounding Indents | Grounding Indents, Mounting Brackets, Board Lock |
| Flange Feature | Female Screwlock (4-40), Mating Side | Female Screwlock (4-40), Mating Side |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Panel Mount | Through Hole, Right Angle, Panel Mount |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Shell Material, Finish | Nickel Plated, Steel | Nickel Plated, Steel |
| Shell Size, Connector Layout [custom] | DB, B | DB, B |
| Shell Size, Connector Layout [custom] | 3 | 3 |
| Termination | Solder | Solder |
SDF-R25 Series
D SUB CONNECTOR, IP67, STANDARD, PLUG, NANOOK SERIES, 25 CONTACTS, DB, SOLDER
| Part | Ingress Protection | Number of Rows | Mounting Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Termination | Contact Type | Color | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Dielectric Material | Connector Style | Flange Feature | Contact Finish | Features | Shell Material, Finish | Material Flammability Rating | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NorComp Inc. SDF-R25-113L462 | IP67 - Dust Tight, Waterproof | 2 | Panel Mount, Right Angle, Through Hole | B, DB | 3 | Brass | 0.76 Ám | 30 Áin | Solder | Signal | Black | Male Pins, Plug | -25 °C | 85 °C | 5 A | Polybutylene Terephthalate (PBT) | D-Sub | Female Screwlock (4-40), Mating Side | Gold | Board Lock, Grounding Indents, Mounting Brackets | Nickel Plated, Steel | UL94 V-0 | |
NorComp Inc. SDF-R25-113L461 | IP67 - Dust Tight, Waterproof | 2 | Panel Mount, Right Angle, Through Hole | B, DB | 3 | Brass | Solder | Signal | Black | Male Pins, Plug | -25 °C | 85 °C | 5 A | Polybutylene Terephthalate (PBT) | D-Sub | Female Screwlock (4-40), Mating Side | Gold | Board Lock, Grounding Indents, Mounting Brackets | Nickel Plated, Steel | UL94 V-0 | Flash | ||
NorComp Inc. SDF-R25-113L012 | IP67 - Dust Tight, Waterproof | 2 | Panel Mount, Right Angle, Through Hole | B, DB | 3 | Brass | 0.76 Ám | 30 Áin | Solder | Signal | Black | Male Pins, Plug | -25 °C | 85 °C | 5 A | Polybutylene Terephthalate (PBT) | D-Sub | Female Screwlock (4-40), Mating Side | Gold | Grounding Indents | Nickel Plated, Steel | UL94 V-0 | |
NorComp Inc. SDF-R25-213L011 | IP67 - Dust Tight, Waterproof | 2 | Panel Mount, Right Angle, Through Hole | B, DB | 3 | Brass | Solder | Signal | Black | Receptacle, Female Sockets | -25 °C | 85 °C | 5 A | Polybutylene Terephthalate (PBT) | D-Sub | Female Screwlock (4-40), Mating Side | Gold | Nickel Plated, Steel | UL94 V-0 | Flash | |||
NorComp Inc. SDF-R25-213L462 | IP67 - Dust Tight, Waterproof | 2 | Panel Mount, Right Angle, Through Hole | B, DB | 3 | Brass | 0.76 Ám | 30 Áin | Solder | Signal | Black | Receptacle, Female Sockets | -25 °C | 85 °C | 5 A | Polybutylene Terephthalate (PBT) | D-Sub | Female Screwlock (4-40), Mating Side | Gold | Board Lock, Mounting Brackets | Nickel Plated, Steel | UL94 V-0 | |
NorComp Inc. SDF-R25-113L011 | IP67 - Dust Tight, Waterproof | 2 | Panel Mount, Right Angle, Through Hole | B, DB | 3 | Brass | Solder | Signal | Black | Male Pins, Plug | -25 °C | 85 °C | 5 A | Polybutylene Terephthalate (PBT) | D-Sub | Female Screwlock (4-40), Mating Side | Gold | Grounding Indents | Nickel Plated, Steel | UL94 V-0 | Flash | ||
NorComp Inc. SDF-R25-213L012 | IP67 - Dust Tight, Waterproof | 2 | Panel Mount, Right Angle, Through Hole | B, DB | 3 | Brass | 0.76 Ám | 30 Áin | Solder | Signal | Black | Receptacle, Female Sockets | -25 °C | 85 °C | 5 A | Polybutylene Terephthalate (PBT) | D-Sub | Female Screwlock (4-40), Mating Side | Gold | Nickel Plated, Steel | UL94 V-0 |
