163A13829X

Active

Amphenol CONEC

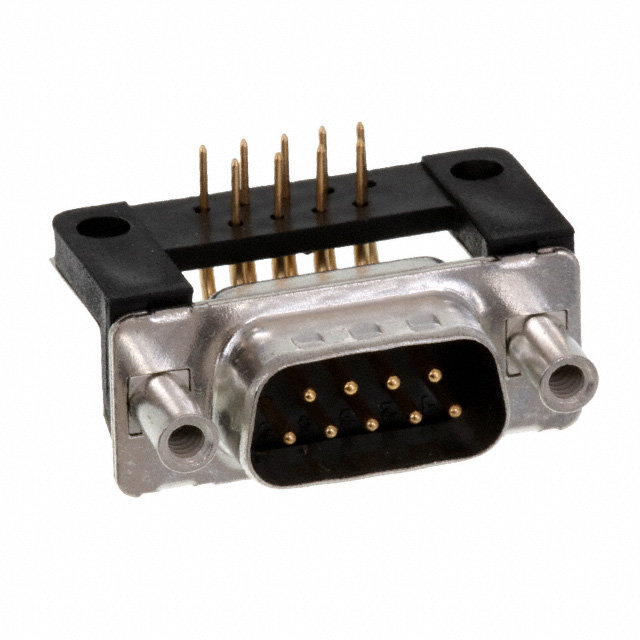

CONN D-SUB PLUG 9POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

163A13829X

Active

Amphenol CONEC

CONN D-SUB PLUG 9POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	163A13829X

Backset Spacing	9.4 mm
Backset Spacing	0.37 in
Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	7.5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents, Mounting Brackets
Flange Feature	4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Solder
Voltage Rating	125 VDC

163A138 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Type	Current Rating (Amps)	Voltage Rating	Contact Finish Thickness	Connector Style	Contact Material	Flange Feature	Color	Number of Rows	Backset Spacing	Backset Spacing	Contact Finish	Mounting Type	Material Flammability Rating	Connector Type	Dielectric Material	Features	Termination	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Flange Feature [custom]	Flange Feature [custom]	Shell Size, Connector Layout	Shell Size, Connector Layout
Amphenol CONEC 163A13849X	-55 °C	125 °C	B DB	3	Signal	7.5 A	125 VDC	Flash	D-Sub	Copper Alloy	4-40	Black	2	9.4 mm	0.37 in	Gold	Board Edge Right Angle Through Hole	UL94 V-0	Male Pins Plug	Polybutylene Terephthalate (PBT) Glass Filled	Grounding Indents Mounting Brackets	Solder
Amphenol CONEC 163A13899X	-55 °C	125 °C	B DB	3	Signal	7.5 A	125 VDC		D-Sub	Copper Alloy	M3	Black	2	9.4 mm	0.37 in	Gold	Board Edge Right Angle Through Hole	UL94 V-0	Male Pins Plug	Polybutylene Terephthalate (PBT) Glass Filled	Grounding Indents Mounting Brackets	Solder	8 çin	0.203 çm
Amphenol CONEC 163A13809X	-55 °C	125 °C			Signal	7.5 A	125 VDC		D-Sub	Copper Alloy		Black	2			Gold	Through Hole	UL94 V-0	Male Pins Plug	Polybutylene Terephthalate (PBT) Glass Filled	Grounding Indents	Solder			37	M3	M3	4 (DC C)
Amphenol CONEC 163A13839X	-55 °C	125 °C			Signal	7.5 A	125 VDC	Flash	D-Sub	Copper Alloy	4-40	Black	2	9.4 mm	0.37 in	Gold	Board Edge Right Angle Through Hole	UL94 V-0	Male Pins Plug	Polybutylene Terephthalate (PBT) Glass Filled	Grounding Indents Mounting Brackets	Solder			15				2
Amphenol CONEC 163A13859X	-55 °C	125 °C			Signal	7.5 A	125 VDC	Flash	D-Sub	Copper Alloy	4-40	Black	2	9.4 mm	0.37 in	Gold	Board Edge Right Angle Through Hole	UL94 V-0	Male Pins Plug	Polybutylene Terephthalate (PBT) Glass Filled	Grounding Indents Mounting Brackets	Solder			37			4 (DC C)
Amphenol CONEC 163A13829X	-55 °C	125 °C	DE E	1	Signal	7.5 A	125 VDC	Flash	D-Sub	Copper Alloy	4-40	Black	2	9.4 mm	0.37 in	Gold	Board Edge Right Angle Through Hole	UL94 V-0	Male Pins Plug	Polybutylene Terephthalate (PBT) Glass Filled	Grounding Indents Mounting Brackets	Solder			9
Amphenol CONEC 163A13879X	-55 °C	125 °C	DE E	1	Signal	7.5 A	125 VDC		D-Sub	Copper Alloy	M3	Black	2	9.4 mm	0.37 in	Gold	Board Edge Right Angle Through Hole	UL94 V-0	Male Pins Plug	Polybutylene Terephthalate (PBT) Glass Filled	Grounding Indents Mounting Brackets	Solder	8 çin	0.203 çm	9
Amphenol CONEC 163A13889X	-55 °C	125 °C			Signal	7.5 A	125 VDC		D-Sub	Copper Alloy	M3	Black	2	9.4 mm	0.37 in	Gold	Board Edge Right Angle Through Hole	UL94 V-0	Male Pins Plug	Polybutylene Terephthalate (PBT) Glass Filled	Grounding Indents Mounting Brackets	Solder	8 çin	0.203 çm	15				2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.62
		10	$ 9.55
		25	$ 9.00
		50	$ 8.77
		100	$ 8.54
		250	$ 7.62
		500	$ 7.15
		1000	$ 6.32

Description

General part information

163A138 Series

9 Position D-Sub Plug, Male Pins Connector
