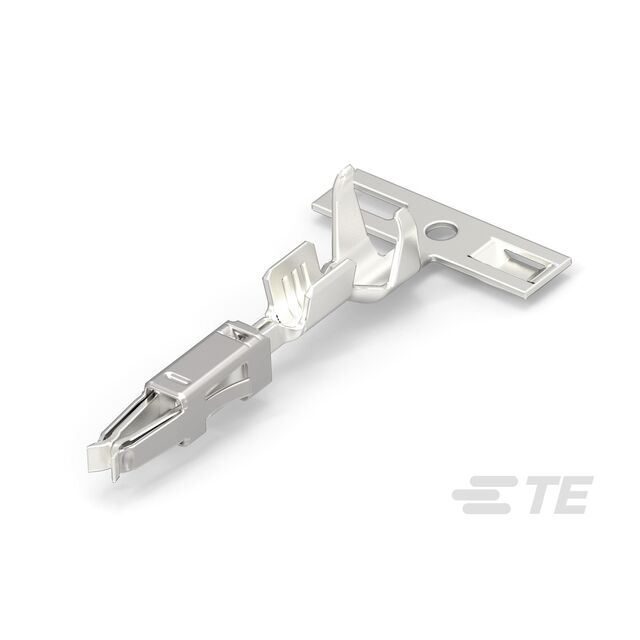

964274-8
ActiveTE Connectivity AMP Connectors
MICRO TIMER2CONTACT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
964274-8
ActiveTE Connectivity AMP Connectors
MICRO TIMER2CONTACT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 964274-8 | 964274 Series |
|---|---|---|
| Contact Finish | Silver | Gold, Silver |
| Contact Finish Thickness | - | 31.5 µin |
| Contact Finish Thickness | - | 0.8 µm |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Socket | Socket |
| Type | Stamped | Stamped |
| Wire Gauge [Max] | 20 AWG | 20 AWG |
| Wire Gauge [Min] | 17 AWG | 17 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.28 | |
| 10 | $ 0.24 | |||
| Tape & Reel (TR) | 4000 | $ 0.17 | ||
| 8000 | $ 0.15 | |||
| 12000 | $ 0.14 | |||
| 28000 | $ 0.14 | |||
964274 Series
CONN SOCKET 17-20AWG CRIMP GOLD
| Part | Contact Finish | Contact Termination | Wire Gauge [Min] | Wire Gauge [Max] | Pin or Socket | Contact Finish Thickness | Contact Finish Thickness | Type |
|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 4-964274-1 | Gold | Crimp | 17 AWG | 20 AWG | Socket | 31.5 µin | 0.8 µm | |
TE Connectivity AMP Connectors 964274-8 | Silver | Crimp | 17 AWG | 20 AWG | Socket | Stamped |
Description
General part information
964274 Series
Socket Contact Silver 17-20 AWG Crimp Stamped
