TE Connectivity Potter & Brumfield Relays

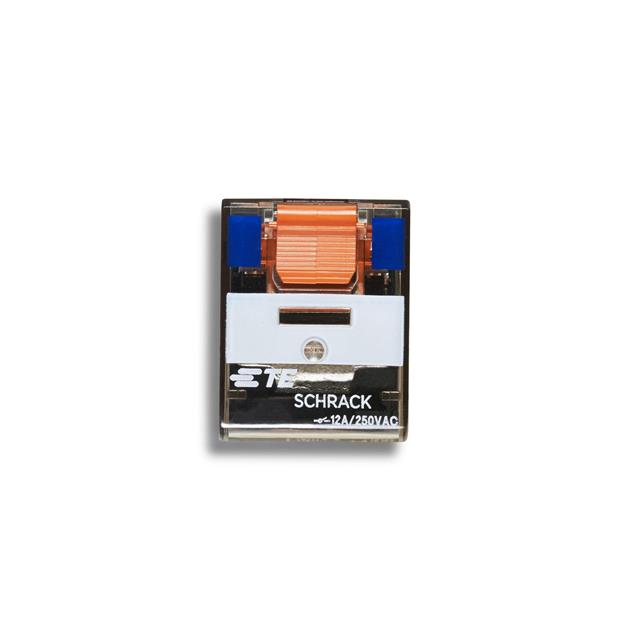

RELAY GEN PURPOSE DPDT 12A 6V

Search across all available documentation for this part.

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE DPDT 12A 6V

Technical Specifications

Parameters and characteristics for this part

Part	Approval Agency	Operate Time	Coil Voltage	Mounting Type	Coil Current	Must Operate Voltage	Coil Type	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Must Release Voltage	Termination Style	Coil Resistance	Contact Form	Relay Type	Release Time	Switching Voltage [Max]	Load - Max Switching	Contact Rating (Current)	Coil Insulation	Seal Rating	Features
TE Connectivity Potter & Brumfield Relays PT271524	cURus VDE	15 ms	24 VAC	Through Hole	125 mA	19.2 VAC	Non Latching	Silver Nickel (AgNi)	-40 °C	70 °C	7.2 VAC	PC Pin	192 Ohms	DPDT (2 Form C)	General Purpose	10 ms	400 VAC	4800 VA	12 A	Class F
TE Connectivity Potter & Brumfield Relays 7-1415027-1	cURus VDE	15 ms		Through Hole	125 mA	4.5 VDC	Non Latching	Silver Nickel (AgNi)	-40 °C	70 °C	0.6 VDC	PC Pin	48 Ohms	DPDT (2 Form C)	General Purpose	10 ms	400 VAC	4800 VA	12 A	Class F	Sealed - Flux Protection	Test Button
TE Connectivity Potter & Brumfield Relays PT271012	cURus VDE	15 ms	12 VDC	Through Hole	62.5 mA	9 VDC	Non Latching	Silver Nickel (AgNi)	-40 °C	70 °C	1.2 VDC	PC Pin	192 Ohms	DPDT (2 Form C)	General Purpose	10 ms	400 VAC	4800 VA	12 A	Class F
TE Connectivity Potter & Brumfield Relays PT271730	cURus VDE		230 VAC	Through Hole	11.8 mA	184 VAC	Non Latching	Silver Nickel (AgNi)	-40 °C	70 °C	69 VAC	PC Pin	19.47 kOhms	DPDT (2 Form C)	General Purpose		400 VAC	4800 VA	12 A	Class F

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay DPDT (2 Form C) 6VDC Coil Through Hole
